  1. Inspect day time running light relay

Toyota RAV4. Inspect day time running light relay


  1. Remove the no. 2 Relay, no. 3 Relay and no. 4 Relay from the engine room no. 2 Relay block.
  2. Measure the resistance of the relays.

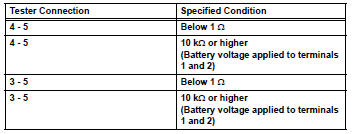

Standard resistance:

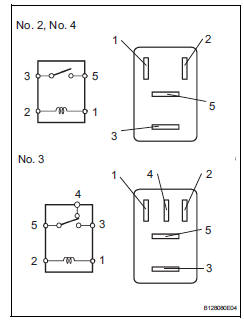

No. 2, No. 4


No. 3


If the result is not as specified, replace the relay.
