Toyota RAV4 (XA40) 2013-2018 Service Manual: Components

Toyota RAV4. Air conditioning unit

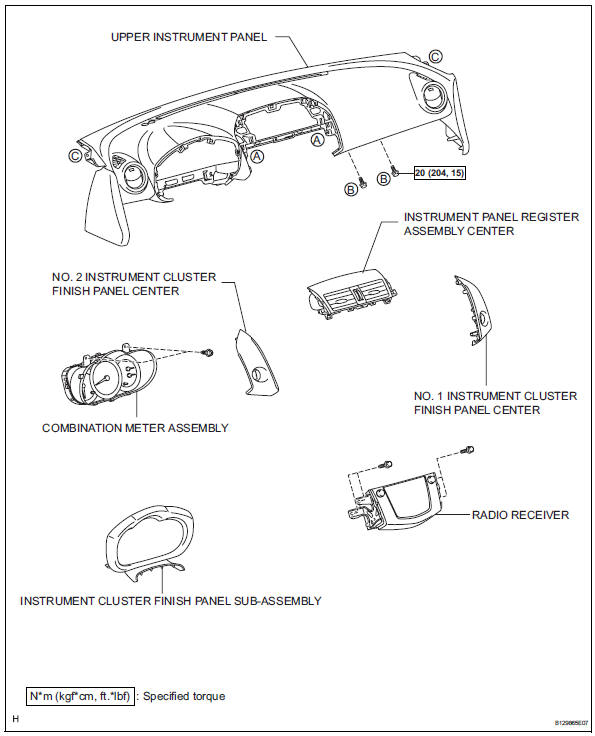

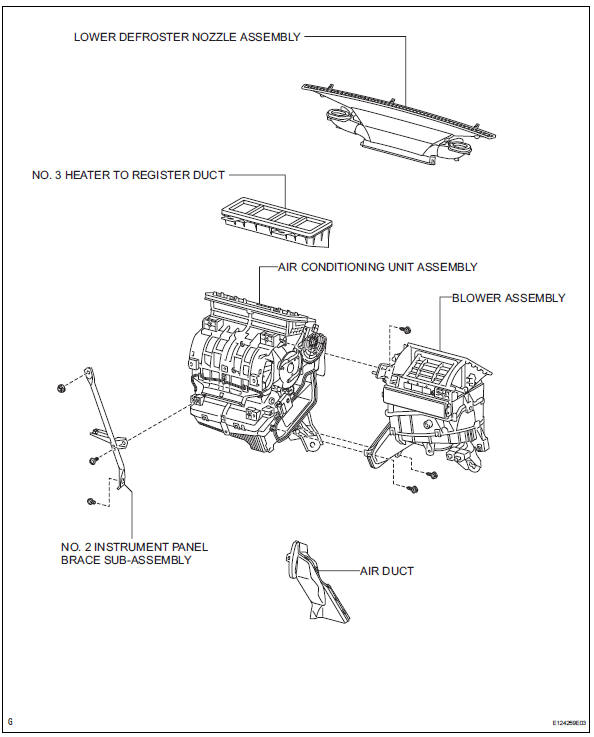

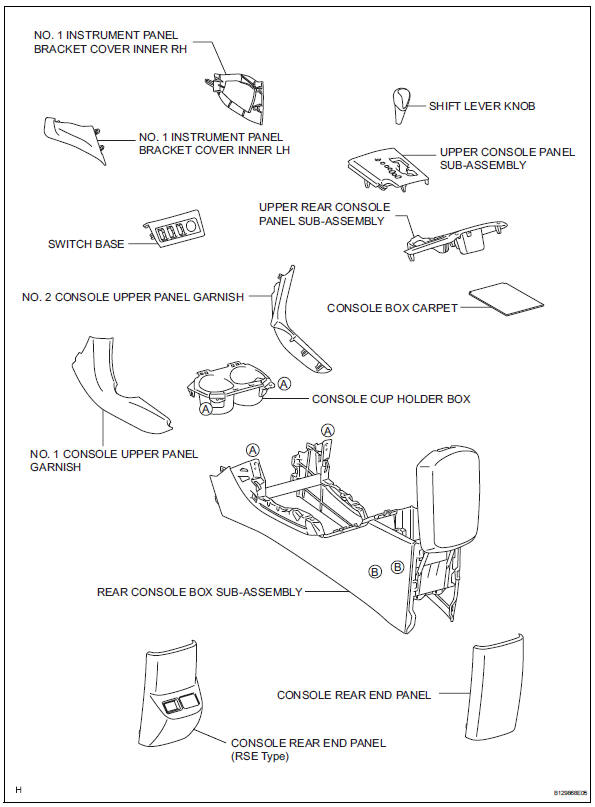

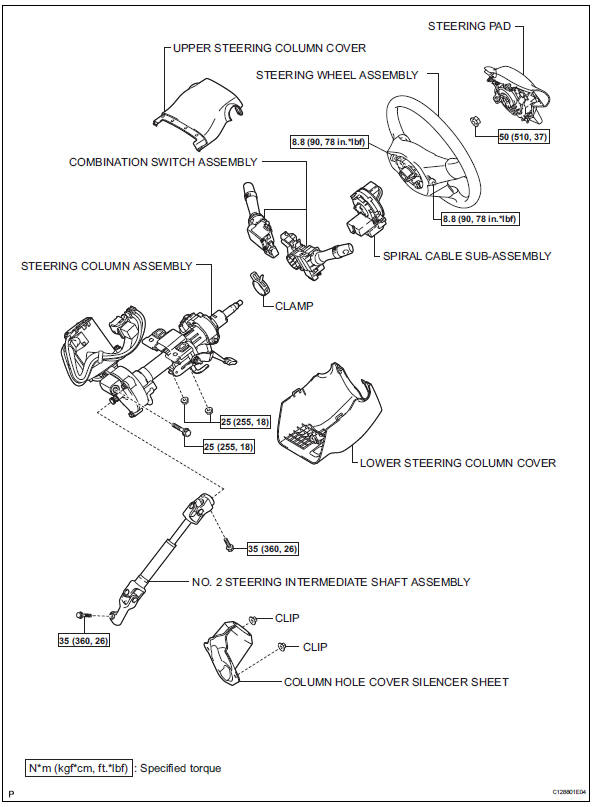

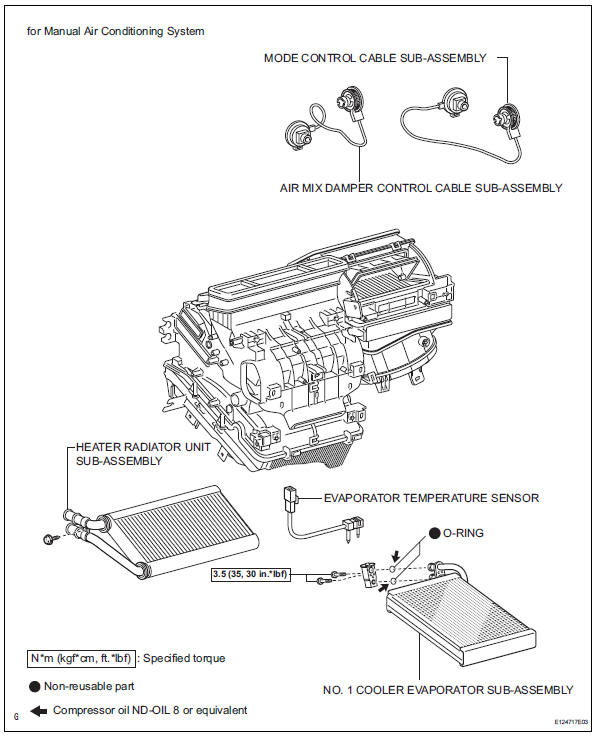

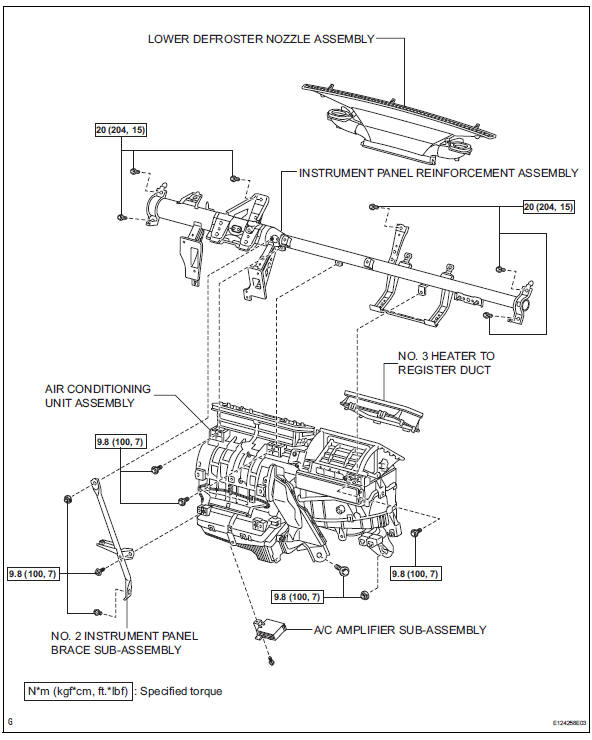

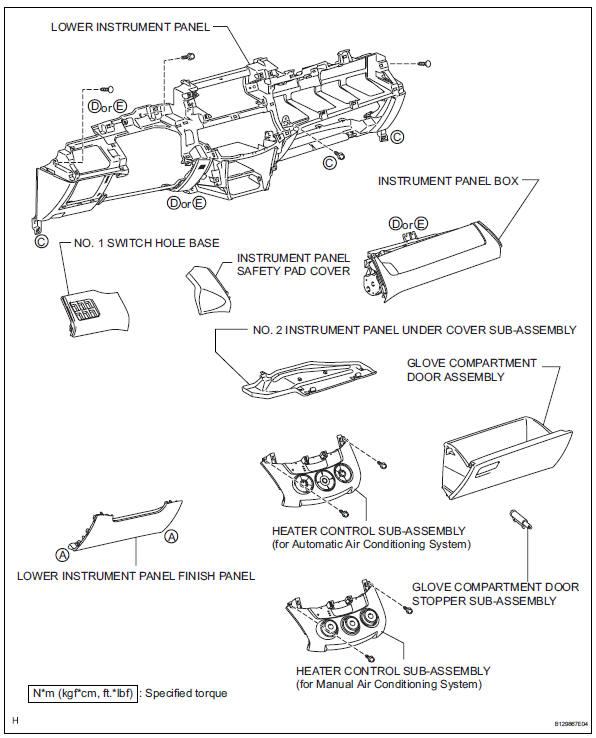

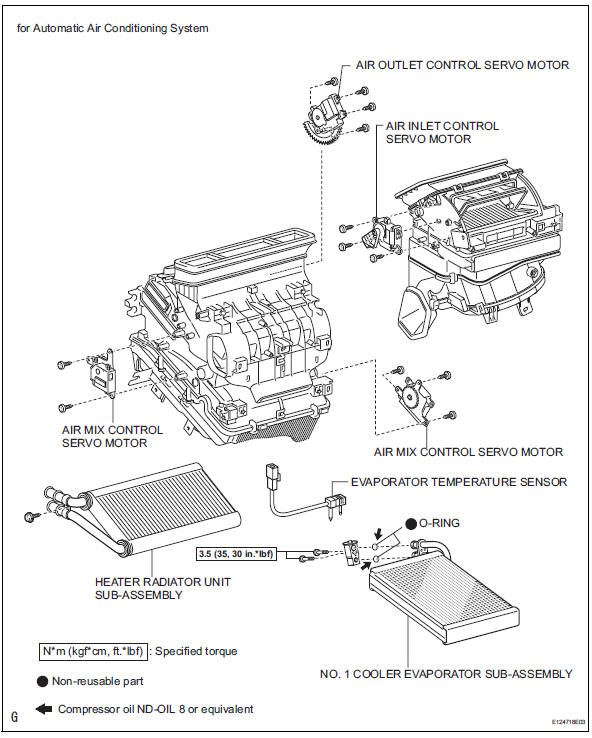

Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Air conditioning unit
...

Removal
Discharge refrigerant from refrigeration system (see page ac-172) Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the ...
