Toyota RAV4 Service Manual: Curtain shield airbag assembly

Toyota RAV4 Service Manual / Supplemental restraint system / Curtain shield airbag assembly

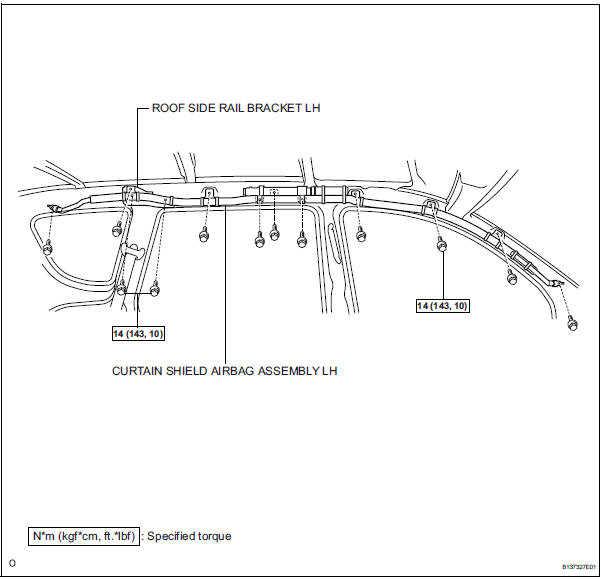

Components

Toyota RAV4. Curtain shield airbag assembly


On-vehicle inspection

Toyota RAV4. On-vehicle inspection


  1. Check curtain shield airbag assembly (vehicle not involved in collision)

  1. Perform a diagnostic system check (see page rs- 49).
  2. With the curtain shield airbag assembly installed on the vehicle, perform a visual check. If any of the defects mentioned below are present, replace the curtain shield airbag with a new one: cuts, minute cracks or marked discoloration on the curtain shield airbag assembly.

If any of the defects mentioned above are present, replace the curtain shield airbag with a new one.

Caution:

For removal and installation of the curtain shield airbag, be sure to follow the correct procedure.

  1. Check curtain shield airbag assembly (vehicle involved in collision and airbag has not deployed)

Toyota RAV4. Check curtain shield airbag assembly (vehicle involved in collision and airbag has not deployed)


  1. Perform a diagnostic system check (see page rs- 49).
  2. With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:

Caution:

For removal and installation procedures of the curtain shield airbag, be sure to follow the correct procedure.

Disposal
Hint: When scrapping a vehicle equipped with an srs or disposing of the front passenger side knee airbag, be sure to deploy the airbag first in accordance with the procedure described below. If an ...

Removal
Hint: Use the same procedures for the rh side and lh side. The procedures listed below are for the lh side. Caution: Be sure to read the precautionary notices concerning the srs airbag syst ...
