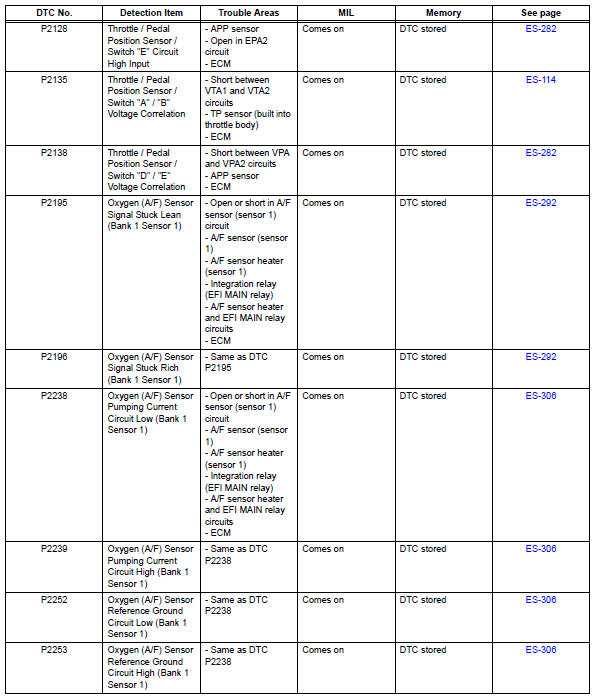

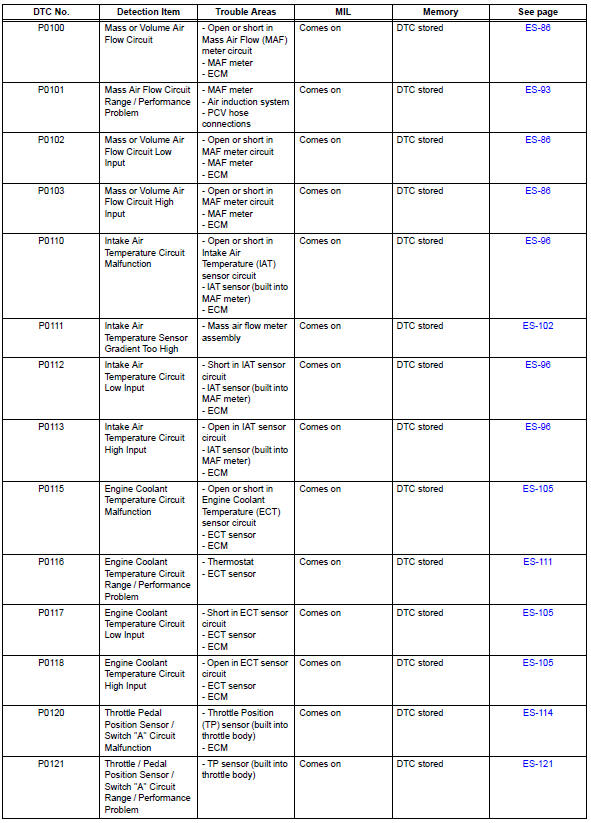

Toyota RAV4 (XA40) 2013-2018 Service Manual: Diagnostic trouble code chart
Hint:
Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.

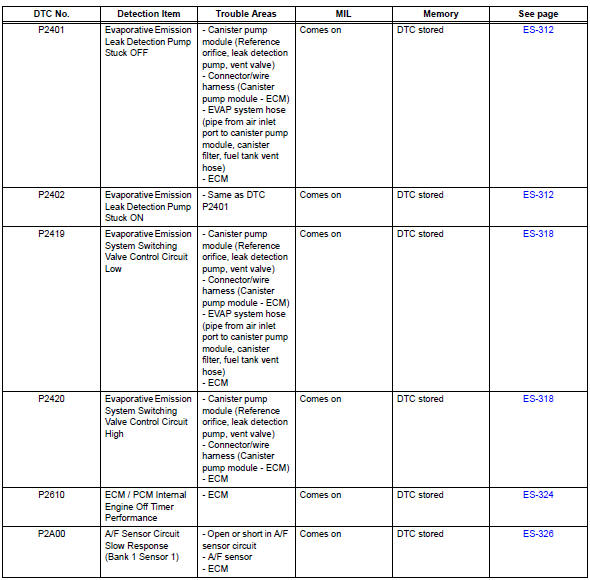

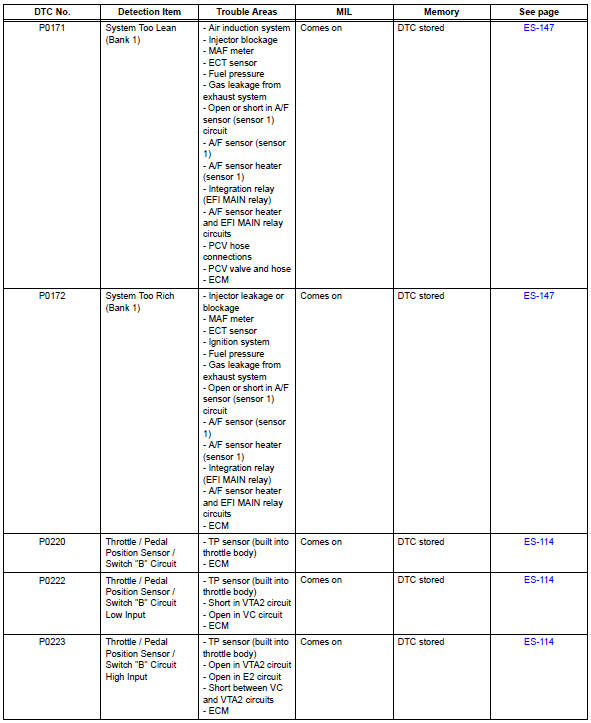

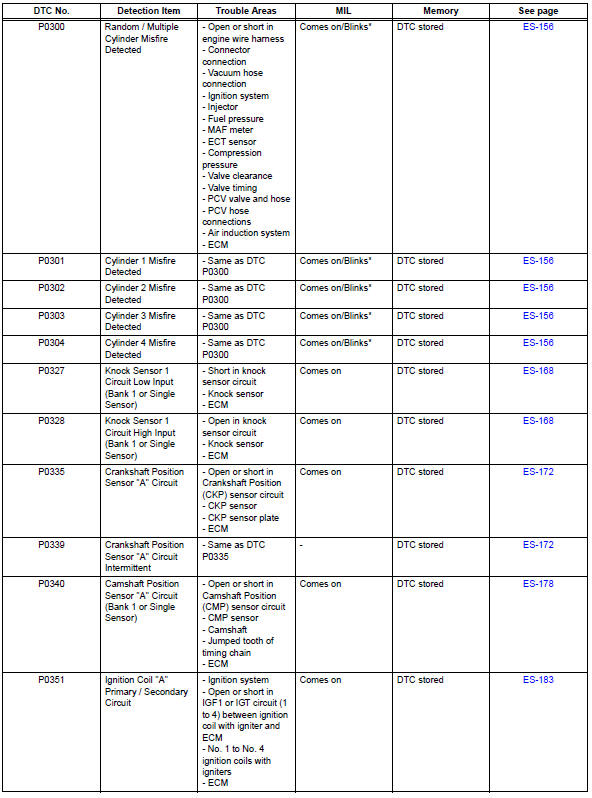

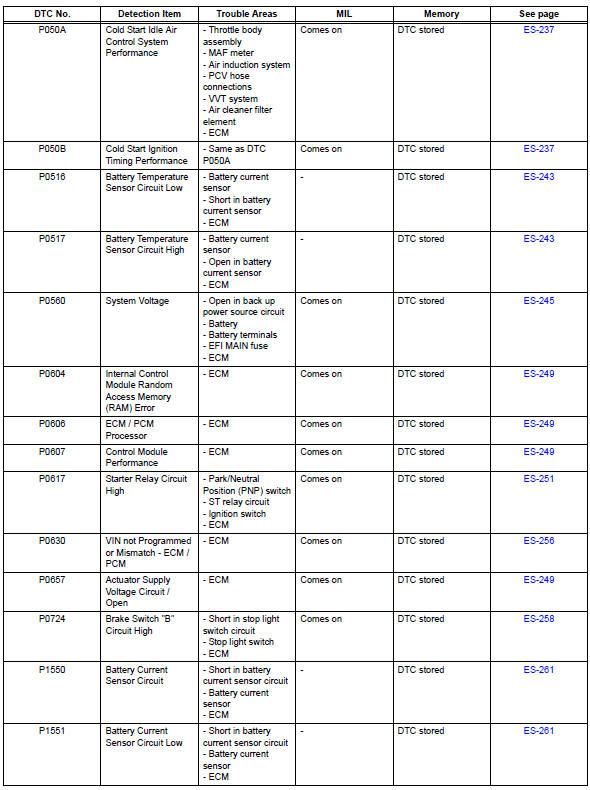

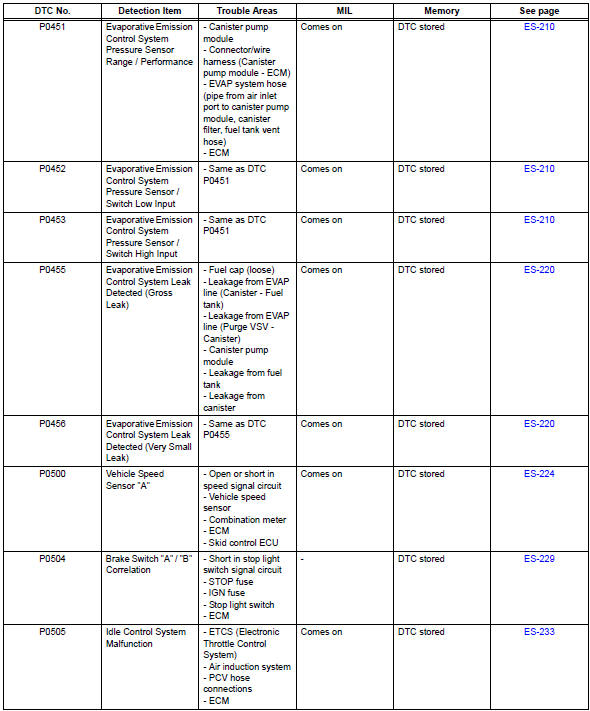

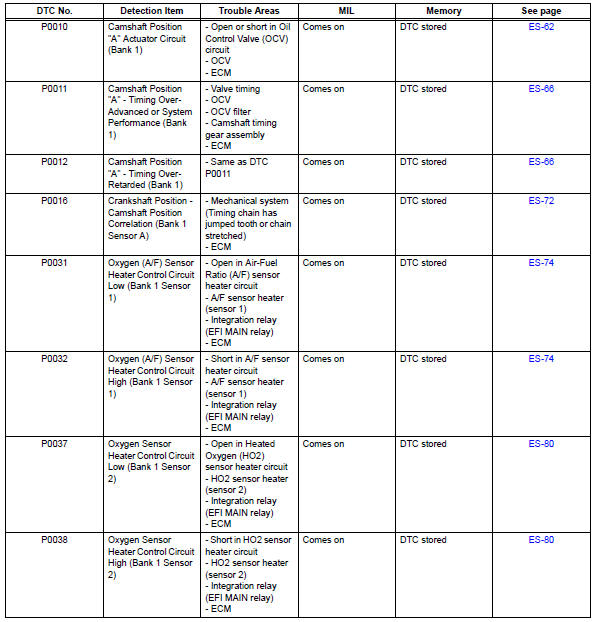

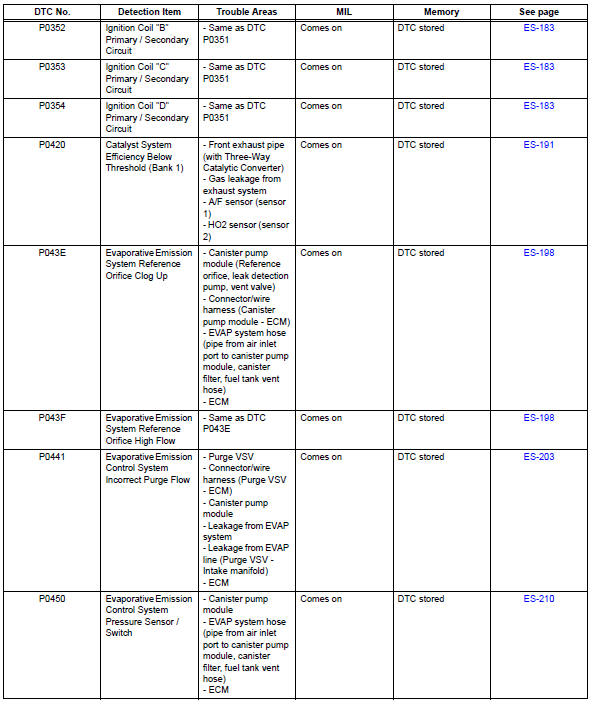

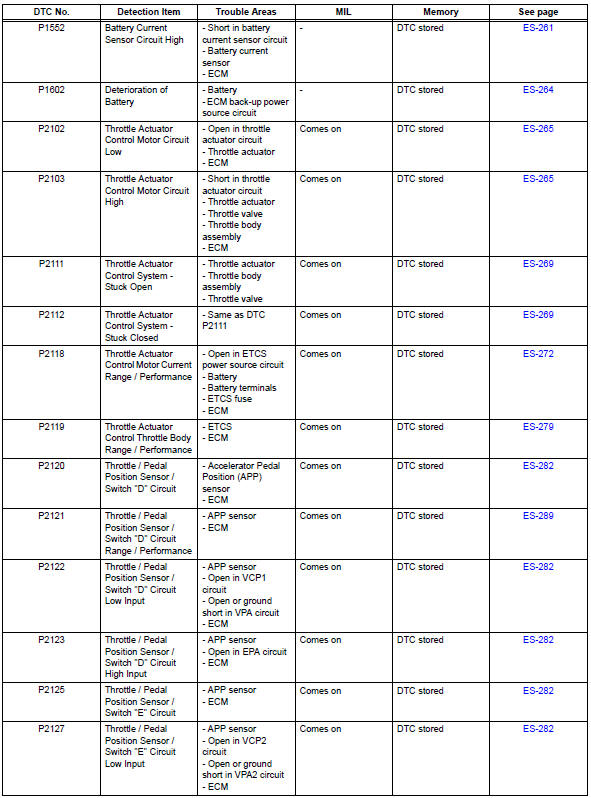

If any dtcs are displayed during a check mode dtc check, check the circuit for the dtcs listed in the table below. For details of each dtc, refer to the page indicated.
Hint:
*: Mil flashes when a catalyst damaged misfire is detected.
- Camshaft position "a" actuator circuit (bank 1)
- Camshaft position "A"
- Camshaft position correlation (bank 1 sensor a)
- Oxygen (a/f) sensor heater control circuit
- Mass or volume air flow circuit
- Mass air flow circuit range / performance problem
- Intake air temperature circuit malfunction
- Intake air temperature sensor gradient too high
- Engine coolant temperature circuit
- Engine coolant temperature circuit range / performance problem
- Throttle / pedal position sensor / switch "A"
- Throttle / pedal position sensor / switch "A" circuit range / performance problem
- Insufficient coolant temperature for closed loop fuel control
- Coolant thermostat (coolant temperature below thermostat regulating temperature)
- Oxygen sensor circuit
- System too
- Random / multiple cylinder misfire detected
- Knock sensor 1 circuit
- Crankshaft position sensor "A"
- Camshaft position sensor "a" circuit (bank 1 or single sensor)
- Ignition coil
- Catalyst system efficiency below threshold (bank 1)
- Evaporative emission system reference orifice
- Evaporative emission control system incorrect purge flow
- Evaporative emission control system pressure sensor
- Evaporative emission control system leak detected
- Vehicle speed sensor "A"
- Brake switch "A" / "B" correlation
- Idle control system malfunction
- Cold start
- Battery temperature sensor circuit
- System voltage
- Internal control module random access memory (ram) error
- Starter relay circuit high
- Vin not programmed or mismatch - ecm / pcm
- Brake switch "b" circuit high
- Battery current sensor circuit
- Deterioration of battery
- Throttle actuator control motor circuit
- Throttle actuator control system
- Throttle actuator control motor current range / performance
- Throttle actuator control throttle body range / performance
- Throttle / pedal position sensor
- Throttle / pedal position sensor / switch "d" circuit range / performance
- Oxygen (a/f) sensor signal stuck
- Oxygen (a/f) sensor pumping current circuit
- Evaporative emission leak detection pump
- Evaporative emission system switching valve control
- Ecm / pcm internal engine off timer performance
- A/f sensor circuit slow response (bank 1 sensor 1)
- Evap system
- Ecm power source circuit
- Vc output circuit
- Fuel pump control circuit
- Mil circuit
System check
Hint:
Performing a system check enables the system,
which consists of multiple actuators, to be operated
without removing any parts. In addition, it can show
whether or not any dtcs are set, and c ...
