Toyota RAV4 (XA40) 2013-2018 Owners Manual: Items to initialize

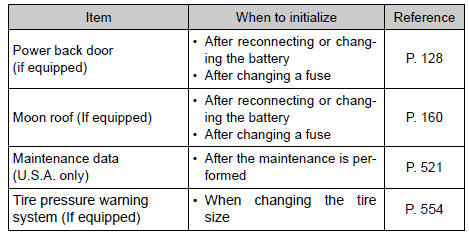

The following items must be initialized for normal system operation after such cases as the battery being reconnected, or maintenance being performed on the vehicle:
