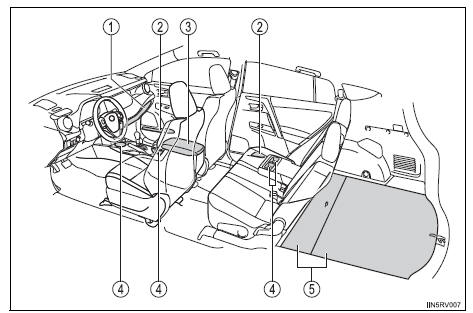

Toyota RAV4 (XA40) 2013-2018 Owners Manual: List of storage features
- Glove box
- Bottle holders
- Console box
- Cup holders
- Storage boxes
Caution
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
- Glasses may be deformed by heat or cracked if they come into contact with other stored items.
- Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.
When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by an open lid or the items stored inside.
Glove box
Pull up the lever to open the glove
box.
Power back door main switch (if equipped)
The power back door main switch is located in the glove box. ...
