Toyota RAV4 (XA40) 2013-2018 Service Manual: Pressure control solenoid "d" electrical (shift solenoid valve slt)
Description
Refer to dtc p2714 (see page ax-91).
Monitor description
When an open or short in the shift solenoid valve slt circuit is detected, the ecm interprets this as a fault.
The ecm will illuminate the mil and store the dtc.

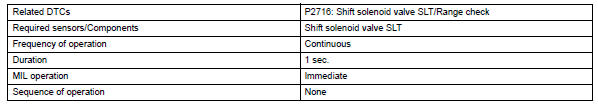

Monitor strategy

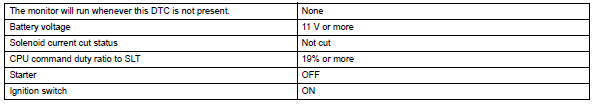

Typical enabling conditions
Typical malfunction thresholds
Component operating range
Wiring diagram
Refer to dtc p2714 (see page ax-91).
Inspection procedure
- Inspect transmission wire (shift solenoid valve slt)
- Disconnect the b27 wire connector.
- Measure the resistance of the transmission wire.
Standard resistance
- Check wire harness (transmission wire - ecm)
- Disconnect the b30 ecm connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
Replace ecm
- Inspect shift solenoid valve slt
- Remove the shift solenoid valve slt.
- Measure the resistance of the solenoid valve.
Standard resistance: 5.0 To 5.6 Ùat 20°c (68°f)
- Connect the battery's positive (+) lead with a 21 w bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.
Ok: valve moves and makes operating noise.
Repair or replace transmission wire
Pressure control solenoid "d" performance (shift solenoid valve slt)
Description
The throttle pressure that is applied to the primary regulator valve (which
modulates the line pressure)
causes the solenoid valve slt, under electronic control, to precisely m ...
Torque converter clutch solenoid circuit
Description
The shift solenoid valve dsl is turned on and off by signals from the ecm to
control the hydraulic
pressure acting on the lock-up relay valve, which then controls operation of the ...
