Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table

 (2005/11-2006/01)

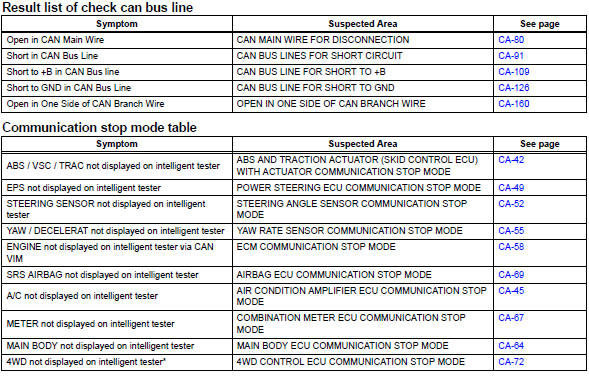

Toyota RAV4.  (2005/11-2006/01)


(2006/01- )

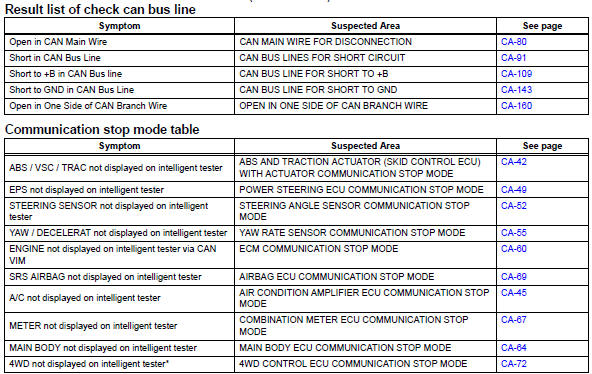

Toyota RAV4. (2006/01- )


Hint:

*: For 4wd

How to proceed with troubleshooting
Notice: Dtcs for the can communication system are as follows: u0073, u0100, u0105, u0121, u0122, u0123, u0124, u0126, u0129, c1280, c1296, c1297, and b1499. Refer to the troubleshooting pr ...

Terminals of ecu (2005/11-2006/01)
Notice: Turn the ignition switch off before measuring the resistances of the main wire and the branch wire. After the ignition switch is turned off, check that the key reminder warning syste ...
