Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table

Hint:

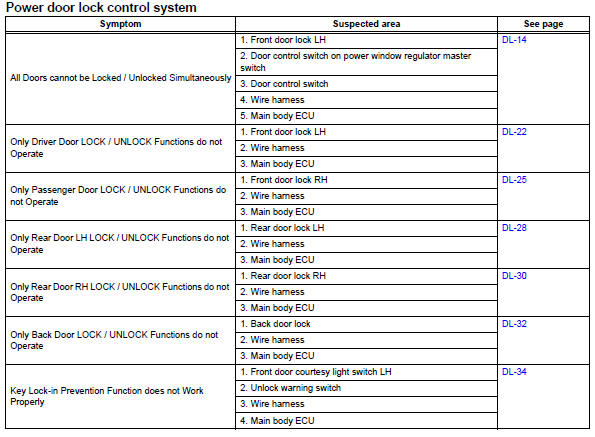

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Toyota RAV4. Problem symptoms table
