Toyota RAV4 (XA40) 2013-2018 Service Manual: Short in front passenger side curtain shield squib circuit

Toyota RAV4. Short in front passenger side curtain shield squib circuit


Description

The front passenger side curtain shield squib circuit consists of the center airbag sensor and the curtain shield airbag rh.

The circuit instructs the srs to deploy when the deployment conditions are met.

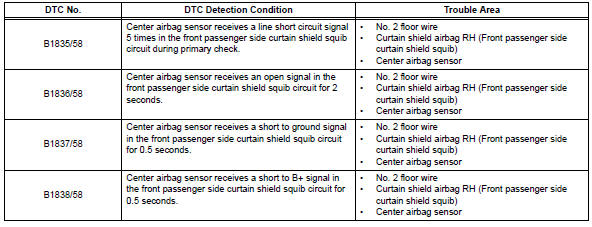

These dtcs are recorded when a malfunction is detected in the front passenger side curtain shield squib circuit.

Toyota RAV4. Short in front passenger side curtain shield squib circuit

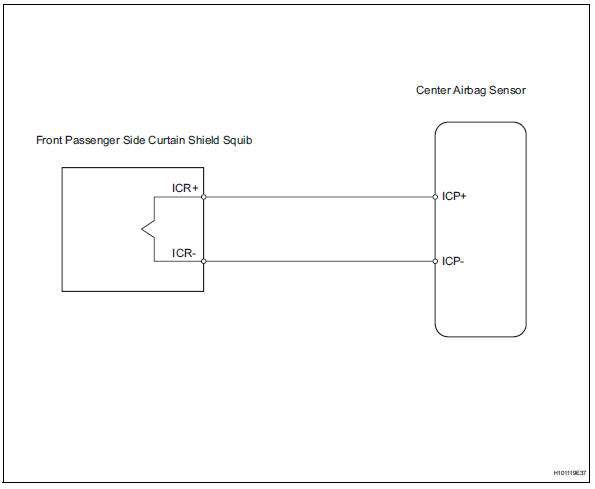

Wiring diagram

Toyota RAV4. Short in front passenger side curtain shield squib circuit


Inspection procedure

Hint:

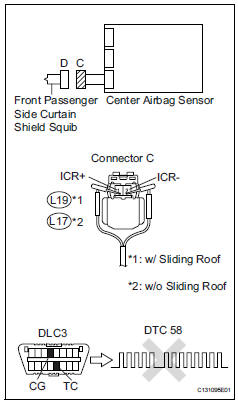

  1. Check curtain shield airbag assembly rh (front passenger side curtain shield squib)

Toyota RAV4. Check curtain shield airbag assembly rh (front passenger side curtain shield squib)


  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
  3. Disconnect the connectors from the curtain shield airbag rh.
  4. Connect the white wire side of sst to connector c.

Caution:

Never connect a tester to the curtain shield airbag rh (front passenger side curtain shield squib) for measurement, as this may lead to a serious injury due to airbag deployment.

Notice:

Sst 09843-18060

  1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds
  2. Turn the ignition switch on, and wait for at least 60 seconds.
  3. Clear the dtcs (see page rs-49).
  4. Turn the ignition switch off.
  5. Turn the ignition switch on, and wait for at least 60 seconds.
  6. Check the dtcs (see page rs-49).

Ok: dtc b1835, b1836, b1837, b1838 or 58 is not output.

Hint:

Dtcs other than dtc b1835, b1836, b1837, b1838 or 58 may be output at this time, but they are not related to this check.



  1. Check connector

  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
  3. Disconnect sst from connector c.
  4. Check that the floor wire connector (on the curtain shield airbag rh side) is not damaged.

Ok: lock button is not disengaged, and claw of lock is not deformed or damaged.

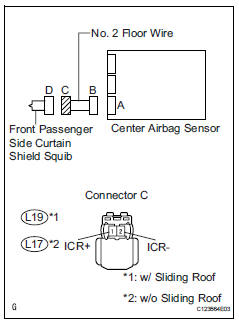

  1. Check floor wire no.2 (Front passenger side curtain shield squib circuit)

Toyota RAV4. Check floor wire no.2 (Front passenger side curtain shield squib circuit)


  1. Disconnect the connectors from the center airbag sensor.
  2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
  3. Turn the ignition switch on.
  4. Measure the voltage of the wire harness side connector.

Standard voltage:

W/ sliding roof


W/o sliding roof


  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
  3. Measure the resistance of the wire harness side connector.

Standard resistance:

W/ sliding roof


W/o sliding roof


  1. Release the activation prevention mechanism built into connector b (see page rs-37).
  2. Measure the resistance of the wire harness side connector.

Standard resistance:

W/ sliding roof


W/o sliding roof




Replace center airbag sensor assembly
