Toyota RAV4 (XA40) 2013-2018 Service Manual: Throttle / pedal position sensor / switch "d" circuit range / performance

Toyota RAV4 (XA40) 2013-2018 Service Manual / 2Az-fe engine mechanical / Sfi system / Diagnostic trouble code chart / Throttle / pedal position sensor / switch "d" circuit range / performance

Description

Hint:

Refer to dtc p2120 (see page es-282).

Toyota RAV4. Throttle / pedal position sensor / switch "d" circuit range / performance


Monitor description

When the difference between the output voltages of vpa and vpa2 deviates from the standard, the ecm determines that the accelerator pedal position (app) sensor is malfunctioning. The ecm turns on the mil and the dtc is set.

Monitor strategy

Toyota RAV4. Monitor strategy


Typical enabling conditions

Toyota RAV4. Typical enabling conditions


Typical malfunction thresholds

Toyota RAV4. Typical malfunction thresholds


Fail-safe

The app sensor has two (main and sub) sensor circuits. If a malfunction occurs in either of the sensor circuits, the ecm detects the abnormal signal voltage difference between the two sensor circuits and switches to limp mode. In limp mode, the functioning circuit is used to calculate the accelerator pedal opening angle to allow the vehicle to continue driving. If both circuits malfunction, the ecm regards the opening angle of the accelerator pedal as being fully closed. In this case, the throttle valve remains closed as if the engine is idling.

If a pass condition is detected and then the ignition switch is turned off, the fail-safe operation stops and the system returns to a normal condition.

Wiring diagram

Refer to dtc p2120 (see page es-286).

Inspection procedure

Hint:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. Check any other dtcs output (in addition to dtc p2121)

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch on.
  3. Turn the tester on.
  4. Select the following menu items: diagnosis / enhanced obd ii / dtc info / current codes.
  5. Read dtcs.

Toyota RAV4. Check any other dtcs output (in addition to dtc p2121)


Hint:

If any dtcs other than p2121 are output, troubleshoot those dtcs first.



  1. Read value using intelligent tester (accel pos #1 and accel pos #2)

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch on and turn the tester on.
  3. Select the following menu items: diagnosis / enhanced obd ii / data list / primary / accel pos #1 and accel pos #2.
  4. Read the values displayed on the tester.

Standard voltage





  1. Replace accelerator pedal assembly


  1. Check whether dtc output recurs (dtc p2121)

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch o on and turn the tester on.
  3. Clear dtcs (see page es-35).
  4. Start the engine.
  5. Allow the engine to idle for 15 seconds.
  6. Select the following menu items: diagnosis / enhanced obd ii / dtc info / current codes.
  7. Read dtcs.

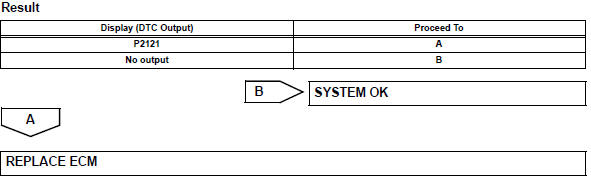

Toyota RAV4. Check whether dtc output recurs (dtc p2121)


Throttle / pedal position sensor
Hint: These dtcs relate to the accelerator pedal position (app) sensor. Description Hint: This etcs (electronic throttle control system) does not use a throttle cable. The app sensor is mou ...

Oxygen (a/f) sensor signal stuck
Hint: Although the dtc titles say oxygen sensor, these dtcs relate to the air-fuel ratio (a/f) sensor. Sensor 1 refers to the sensor mounted in front of the three-way catalytic convert ...
