Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger.

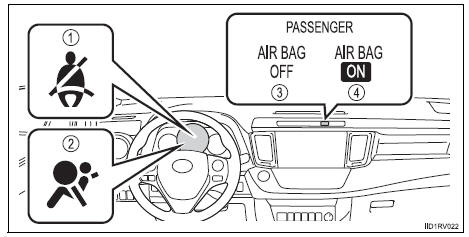

Toyota RAV4. Front passenger occupant classification system


  1. Seat belt reminder light
  2. Srs warning light
  3. “Air bag off” indicator light
  4. “Air bag on” indicator light

Condition and operation in the front passenger occupant classification system

Adult*1

Toyota RAV4. Adult*1


Child*4

Toyota RAV4. Child*4


Child restraint system with infant*5

Toyota RAV4. Child restraint system with infant*5


Unoccupied

Toyota RAV4. Unoccupied


There is a malfunction in the system

Toyota RAV4. There is a malfunction in the system


*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may not recognize him/her as an adult depending on his/her physique and posture.

*2: In the event the front passenger is wearing a seat belt.

*3: In the event the front passenger does not wear a seat belt.

*4: For some children, child in seat, child in booster seat or child in convertible seat, the system may not recognize him/her as a child. Factors which may affect this can be the physique or posture.

*5: Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable.

*6: In case the indicator light is not illuminated, consult this manual on how to install the child restraint system properly.

Caution

Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant classification system.

Failure to do so may cause death or serious injury.

Front passenger occupant classification system precautions

Srs airbags
The srs airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce th ...

Safety information for children
Observe the following precautions when children are in the vehicle. Use a child restraint system appropriate for the child, until the child becomes large enough to properly wear the vehicle’s se ...
