Toyota RAV4 Service Manual: Outer mirror switch

Toyota RAV4 Service Manual / Mirror / Outer mirror switch

Inspection

  1. Inspect outer mirror switch assembly

Toyota RAV4. Inspect outer mirror switch assembly

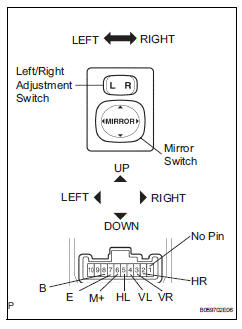

  1. The l position of the left/right adjustment switch: measure the resistance of the mirror switch.

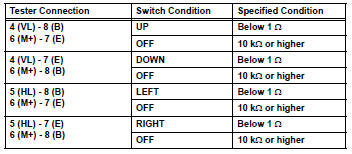

Standard resistance (for left side)


If the result is not as specified, replace the switch assembly.

  1. The r position of the left/right adjustment switch: measure the resistance of the mirror switch.

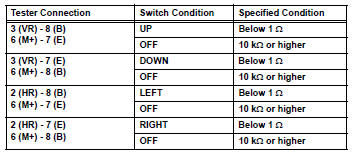

Standard resistance (for right side)


If the result is not as specified, replace the switch assembly.
