Toyota RAV4 (XA40) 2013-2018 Service Manual: Power mirror control system

Toyota RAV4 (XA40) 2013-2018 Service Manual / Mirror / Power mirror control system

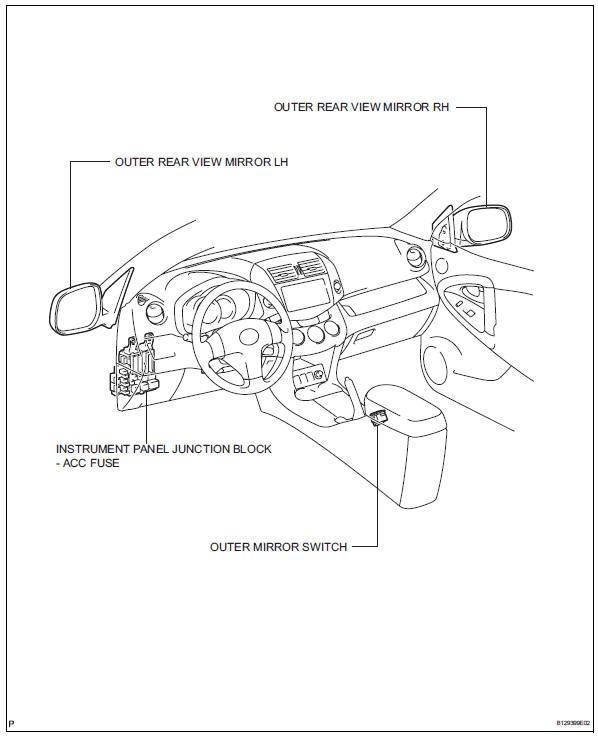

Parts location

Toyota RAV4. Parts location

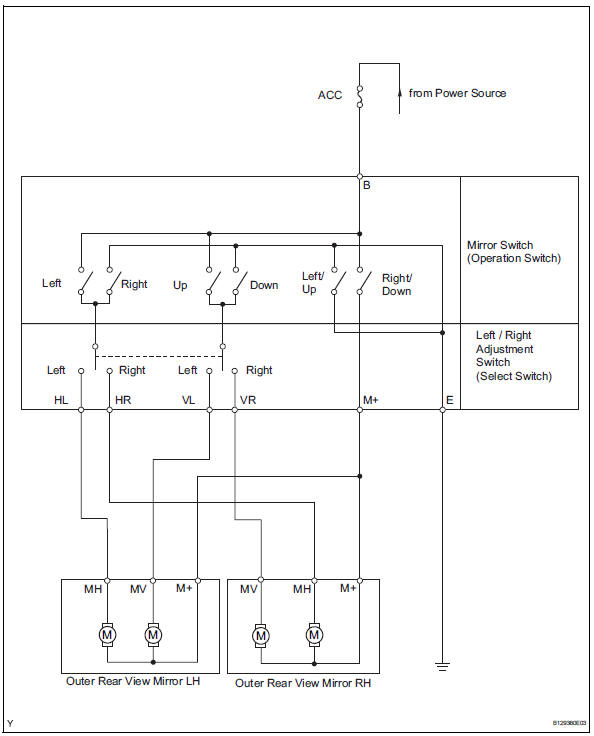

System diagram

Toyota RAV4. Parts location


System description

The outer mirror switch controls the outer rear view mirror lh and rh.

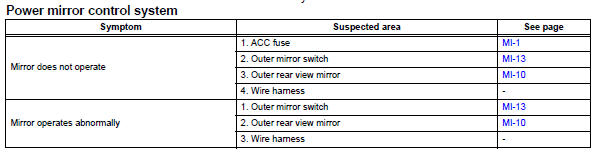

Problem symptoms table

Hint:

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary

Toyota RAV4. Problem symptoms table


Mirror
...

Inner rear view mirror
Components Removal Remove inner rear view mirror assembly Disengage the 2 claws and separate the inner rear view mirror cover as shown in the illustration. Remove the in ...
