Toyota RAV4 Owners Manual: Summary of the blind spot monitor

The blind spot monitor is a system that has 2 functions;

Assists the driver in making the decision when changing lanes

Assists the driver when backing up

These functions use same sensors.

Toyota RAV4. Summary of the blind spot monitor

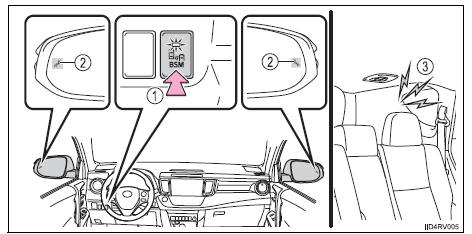

  1. Bsm main switch

Pressing the switch turns the system on or off. When the switch is set to on, the switch’s indicator illuminates and the buzzer sounds. Common switch for blind spot monitor function and rear cross traffic alert function.

  1. Outside rear view mirror indicators

Blind spot monitor function: when a vehicle is detected in the blind spot, the outside rear view mirror indicator comes on while the turn signal lever is not operated and the outside rear view mirror indicator flashes while the turn signal lever is operated.

Rear cross traffic alert function: when a vehicle approaching from the right or left rear of the vehicle is detected, the outside rear view mirror indicators flash.

  1. Rear cross traffic alert buzzer (rear cross traffic alert function only)

When a vehicle approaching from the right or left rear of the vehicle is detected, a buzzer sounds from behind the left-hand rear seat.

The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be difficult to see.

Rear cross traffic alert buzzer hearing

Rear cross traffic alert function may be difficult to hear over loud noises such as high audio volume.

When there is a malfunction in the blind spot monitor system

If a system malfunction is detected due to any of the following reasons, the bsm warning light will come on

Certification for the blind spot monitor system

Fcc id: oaysrr2a

This device complies with part 15 of the fcc rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

Fcc warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in canada

Applicable law: canada 310

This device complies with industry canada licence-exempt rss standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Frequency bands: 24.05-24.25 Ghz

Output power: less than 20 milliwatts

Caution

Handling the radar sensor

One blind spot monitor sensor is installed inside the left and right side of the vehicle rear bumper respectively. Observe the following to ensure the blind spot monitor system can function correctly.

Bsm (blind spot monitor)
...

The blind spot monitor function
The blind spot monitor function uses radar sensors to detect vehicles that are traveling in an adjacent lane in the area that is not reflected in the outside rear view mirror (the blind spot), and a ...
