Toyota RAV4 Service Manual: Diagnostic trouble code chart (2005/11-2006/01)

Hint:

When the air conditioning system functions properly, dtc b1400/00 is output.

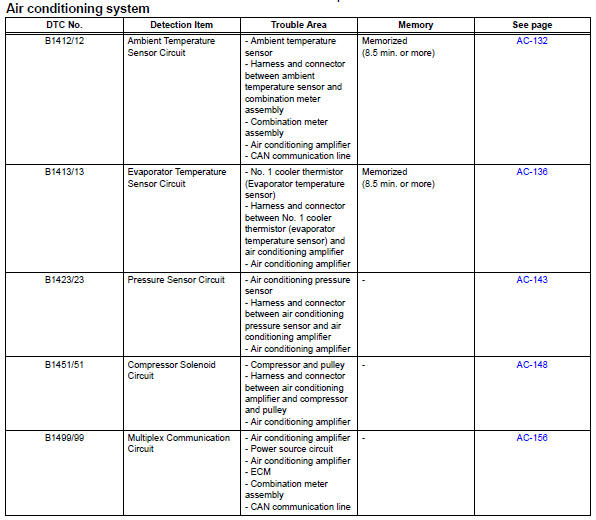

Toyota RAV4.  Diagnostic trouble code chart (2005/11-2006/01)


Data list / active test (2006/01- )
Read data list Hint: Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the data list early in ...

Diagnostic trouble code chart (2006/01- )
Hint: When the air conditioning system functions properly, dtc b1400/00 is output. Hint: *1: Dtc b1422/22 (compressor lock sensor circuit) is indicated only for a currently occurring malfunct ...
