Toyota RAV4 Owners Manual: Front seats

Adjustment procedure

Manual seat

Toyota RAV4. Adjustment procedure

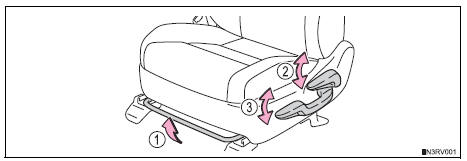

  1. Seat position adjustment lever
  2. Seatback angle adjustment lever
  3. Vertical height adjustment lever (driver’s side only)

Power seat (driver’s side only)

Toyota RAV4. Power seat (driver’s side only)

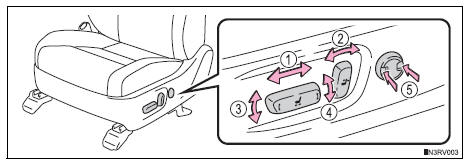

  1. Seat position adjustment switch
  2. Seatback angle adjustment switch
  3. seat cushion (front) angle adjustment switch
  4. Vertical height adjustment switch
  5. Lumbar support adjustment switch

Caution

When adjusting the seat position

Seat adjustment

Adjusting the seats
...

Rear seats
Adjustment procedure Pull up the lever. Then lean back to the desired angle and release the lever. When a person sits in the rear center position, align all seatbacks at the same angle. Foldi ...
