Toyota RAV4 Service Manual: Installation

Hint:

Standard heating temperature


Notice:

Do not heat the body and spoiler excessively.

  1. Install center stop light

  1. Install the center stop light with the 2 screws.

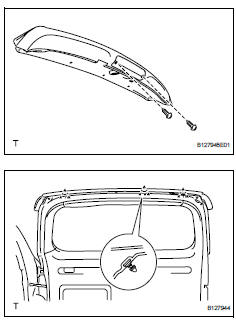

  1. Install rear spoiler

Toyota RAV4. Install rear spoiler


  1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface
  1. If reusing the spoiler:

Clean the spoiler.

  1. Using a heat light, heat the spoiler.
  1. Connect the center stop light connector.
  2. Install the spoiler with 3 clips.
  3. Install the 3 bolts.

Torque: 7.5 N*m (76 kgf*cm, 66 in.*Lbf)

  1. Install back door center garnish (see page ed-67)

  2. Connect cable to negative battery terminal

Toyota RAV4. Connect cable to negative battery terminal
