Toyota RAV4 (XA40) 2013-2018 Service Manual: Terminals of ecu

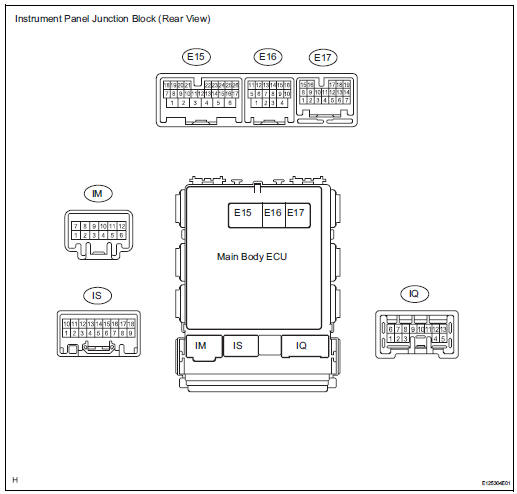

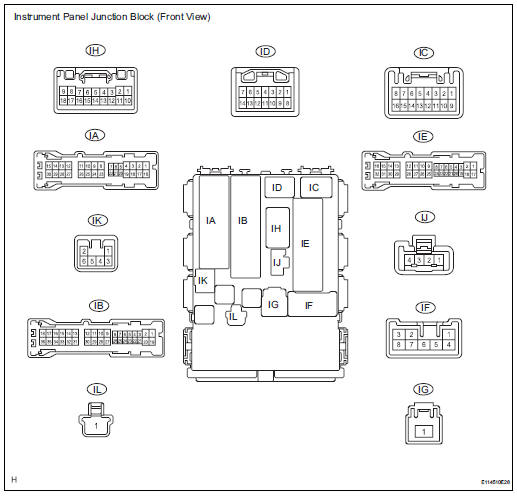

  1. Check instrument panel junction block (main body ecu)

Toyota RAV4. Check instrument panel junction block (main body ecu)


Toyota RAV4. Check instrument panel junction block (main body ecu)

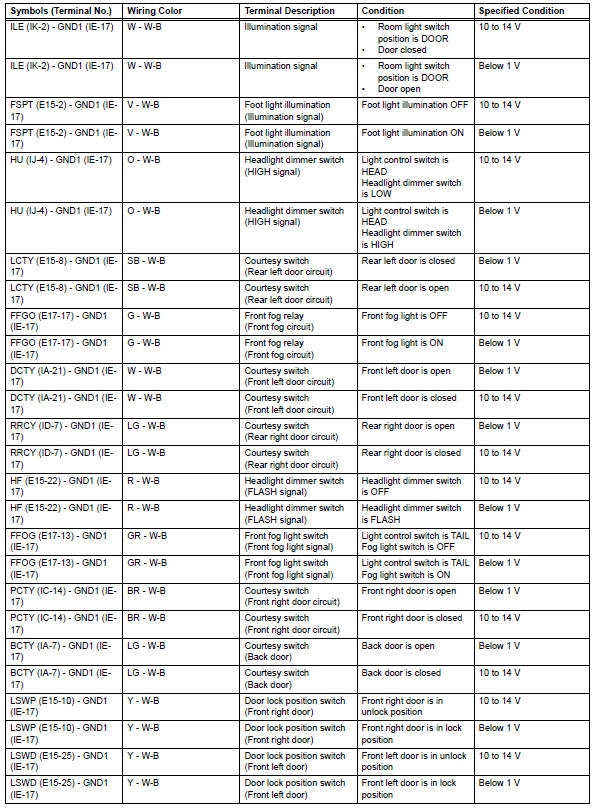

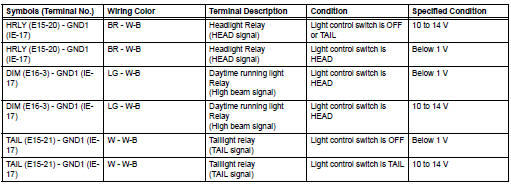

  1. Measure the voltage of the connectors.

Toyota RAV4. Check instrument panel junction block (main body ecu)


Toyota RAV4. Check instrument panel junction block (main body ecu)


If the result is not as specified, the junction block (main body ecu) may have a malfunction.
