Toyota RAV4 (XA40) 2013-2018 Owners Manual: Listening to bluetooth® audio
The bluetooth® audio system enables the user to enjoy music played on a portable player from the vehicle speakers via wireless communication.
When a bluetooth® device cannot be connected, check the connection status on the “bluetooth* audio” screen. If the device is not connected, either register or reconnect the device.
*: Bluetooth is a registered trademark of bluetooth sig, inc.

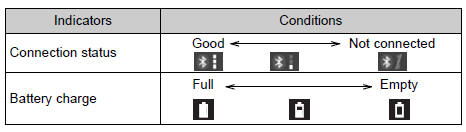

Status display
You can check such indicators as signal strength and battery charge on the screen.
- Connection status
- Battery charge
The battery charge indicator may not be displayed depending on the connected device.
Playing bluetooth® audio
Select
to play/pause.
For details on “bluetooth* audio” screen operation methods, refer to basic audio operations.
For details on how to select a track or album, refer to selecting, fastforwarding and reversing tracks/files/songs.
*: Bluetooth is a registered trademark of bluetooth sig, inc.
