Toyota RAV4 Service Manual: Battery current sensor

Toyota RAV4 Service Manual / 2Az-fe charging / Battery current sensor

On-vehicle inspection

  1. Check battery current sensor assembly

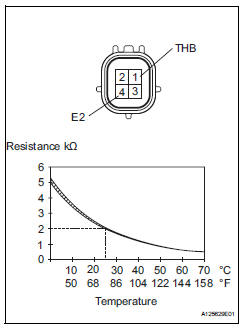

  1. Measure the resistance of the sensor.

Standard resistance


If the result is not as specified, replace the sensor assembly.

  1. Measure the resistance of the sensor.

Standard resistance


If the result is not as specified, replace the sensor assembly.

Toyota RAV4. Check battery current sensor assembly


Toyota RAV4. Check battery current sensor assembly


Installation
