Toyota RAV4 Service Manual: Brk relay

Toyota RAV4. Brk relay


On-vehicle inspection

  1. Inspect brk relay

  1. Remove the brk relay from the engine room no. 1 Relay block.
  2. Measure the resistance of the relay.

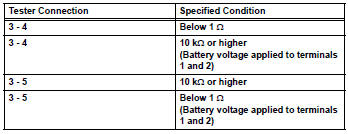

Standard resistance


If the result is not as specified, replace the relay.
