Toyota RAV4. Door control switch


Inspection

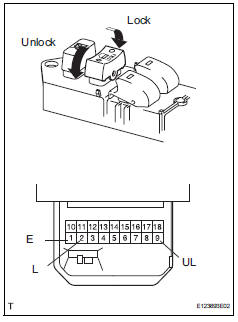

  1. Inspect power window regulator master switch assembly (door control switch)

  1. Measure the resistance of the door control switch.

Standard resistance


If the result is not as specified, replace the power window regulator master switch assembly.

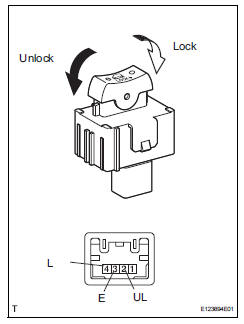

  1. Inspect door control switch assembly

Toyota RAV4. Inspect door control switch assembly


  1. Measure the resistance of the door control switch.

Standard resistance


If the result is not as specified, replace the door control switch assembly.
