Toyota RAV4 Service Manual: Driver side satellite sensor bus initialization incomplete

Toyota RAV4 Service Manual / Supplemental restraint system / Airbag system / Diagnostic trouble code chart / Driver side satellite sensor bus initialization incomplete

Toyota RAV4. Driver side satellite sensor bus initialization incomplete


Description

The side airbag sensor lh consists of part including the diagnostic circuit and the lateral deceleration sensor.

When the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether or not the srs should be activated.

Dtc b1643/81 is set when a malfunction is detected in the side airbag sensor lh circuit.

Toyota RAV4. Driver side satellite sensor bus initialization incomplete

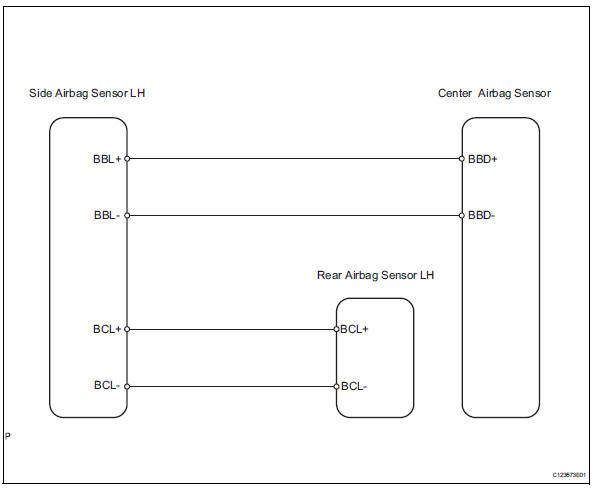

Wiring diagram

Toyota RAV4. Driver side satellite sensor bus initialization incomplete


Inspection procedure

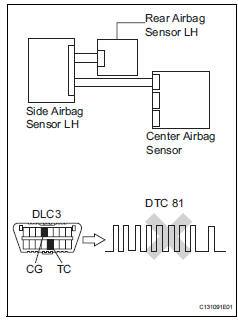

  1. Check for dtc

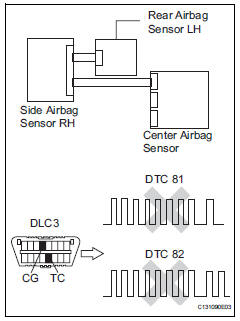

Toyota RAV4. Check for dtc


  1. Turn the ignition switch on, and wait for at least 60 seconds.
  2. Clear the dtcs (see page rs-49).
  3. Turn the ignition switch off.
  4. Turn the ignition switch on, and wait for at least 60 seconds.
  5. Check the dtcs (see page rs-49).

Ok: dtc b1622/81 is not output.

Dtc b1632/81 is not output.

Hint:

Dtcs other than dtc b1622/81 and b1632/81 may be output at this time, but they are not related to this check.



  1. Check connection of connector

  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) terminal battery, and wait for at least 90 seconds.
  3. Check that the connectors are properly connected to the center airbag sensor, rear airbag sensor lh and the side airbag sensor lh.

Ok: the connectors are properly connected.

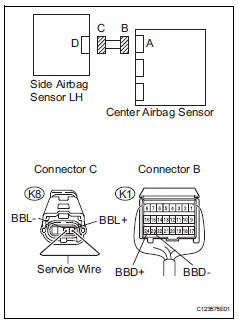

  1. Check floor wire (open)

Toyota RAV4. Check floor wire (open)


  1. Disconnect the connectors from the center airbag sensor and the side airbag sensor lh.
  2. Using a service wire, connect k8-4 (bbl+) and k8-3 (bbl-) of connector c.

Notice:

Do not forcibly insert the service wire into the terminals of the connector when connecting.

  1. Measure the resistance of the wire harness side connector.

Standard resistance



  1. Check floor wire (short)

Toyota RAV4. Check floor wire (short)


  1. Disconnect the service wire from connector c.
  2. Measure the resistance of the wire harness side connector.

Standard resistance

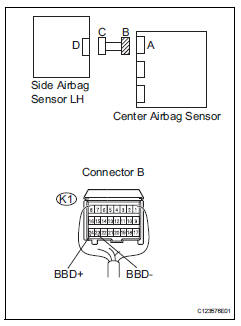

  1. Check floor wire (to b+)

Toyota RAV4. Check floor wire (to b+)


  1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
  2. Turn the ignition switch on.
  3. Measure the voltage of the wire harness side connector.

Standard voltage

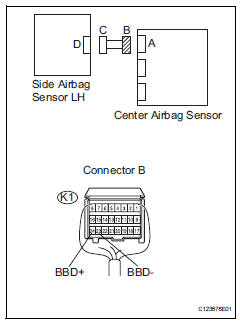

  1. Check floor wire (to ground)

Toyota RAV4. Check floor wire (to ground)


  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
  3. Measure the resistance of the wire harness side connector.

Standard resistance

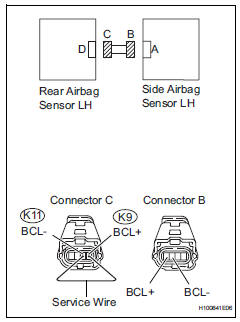

  1. Check floor wire (open)

Toyota RAV4. Check floor wire (open)


  1. Disconnect the connectors from the side airbag sensor lh and the rear airbag sensor lh.
  2. Using a service wire, connect k11-1 (bcl-) and k11-2 (bcl+) of connector c.

Notice:

Do not forcibly insert the service wire into the terminals of the connector when connecting.

  1. Measure the resistance of the wire harness side connector.

Standard resistance

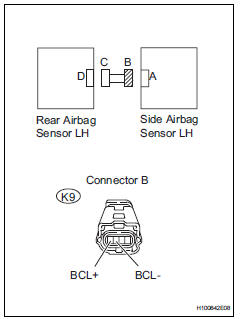

  1. Check floor wire (short)

Toyota RAV4. Check floor wire (short)


  1. Disconnect the service wire from connector c.
  2. Measure the resistance of the wire harness side connector.

Standard resistance

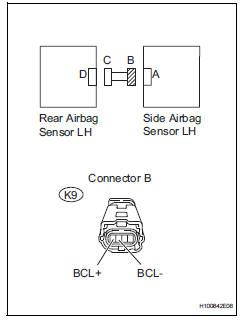

  1. Check floor wire (to b+)

Toyota RAV4. Check floor wire (to b+)


  1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
  2. Turn the ignition switch on.
  3. Measure the voltage of the wire harness side connector.

Standard voltage

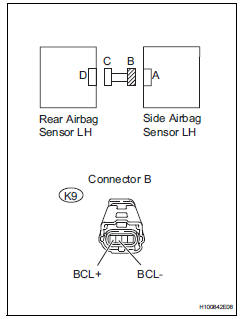

  1. Check floor wire (to ground)

Toyota RAV4. Check floor wire (to ground)


  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
  3. Measure the resistance of the wire harness side connector.

Standard resistance




  1. Check side airbag sensor lh

Toyota RAV4. Check side airbag sensor lh


  1. Connect the connectors to the center airbag sensor .
  2. Interchange the side airbag sensor lh with the side airbag sensor rh and connect the connectors to them.
  3. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
  4. Turn the ignition switch on, and wait for at least 60 seconds.
  5. Clear the dtcs (see page rs-49).
  6. Turn the ignition switch off.
  7. Turn the ignition switch on, and wait for at least 60 seconds.
  8. Check the dtcs (see page rs-49).

Result


Hint:

Dtcs other than dtc b1643/81 and b1648/82 may be output at this time, but they are not related to this check.


  1. Check rear airbag sensor lh

Toyota RAV4. Check rear airbag sensor lh


  1. Turn the ignition switch off.
  2. Disconnect the cable from the negative (-) terminal battery, and wait for at least 90 seconds.
  3. Interchange the rear airbag sensor lh with the rear airbag sensor rh and connect the connectors to them.
  4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
  5. Turn the ignition switch on, and wait for at least 60 seconds.
  6. Clear the dtcs (see page rs-49).
  7. Turn the ignition switch off.
  8. Turn the ignition switch on, and wait for at least 60 seconds.
  9. Check the dtcs (see page rs-49).

Result


Hint:

Dtcs other than dtc b1643/81 and b1648/82 may be output at this time, but they are not related to this check.


Use simulation method to check
