Freeze frame data

Notice:

It is difficult to show the specified values (judgment values) clearly because freeze frame data values change significantly due to differences in measurement conditions, surroundings, or vehicle conditions. For this reason, there may be a problem even when the values are within specifications.
Turn the ignition switch on and park the vehicle on level ground. Check the freeze frame data by using intelligent tester.

Connect the intelligent tester (with can vim) to the dlc3.

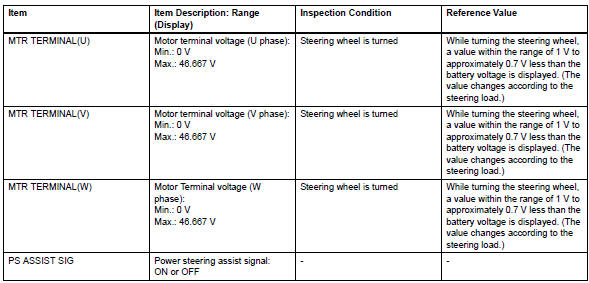

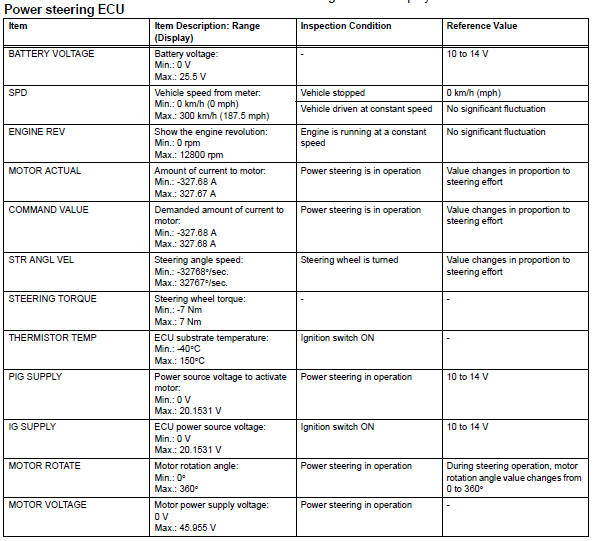

Turn the ignition switch on and check the freeze frame data by following the prompts on the intelligent tester display.

Toyota RAV4. Freeze frame data

Dtc check / clear

Check dtc When using intelligent tester: Connect the intelligent tester (with can vim) to the dlc3. Turn the ignition switch on and press the intelligent tester main switch on ...

If a problem occurs in the electric power steering system, the p/s warning light will come on in the combination meter and steering power assist will be stopped, fixed at a particular point, or dec ...
