Toyota RAV4 (XA40) 2013-2018 Owners Manual: Parking brake

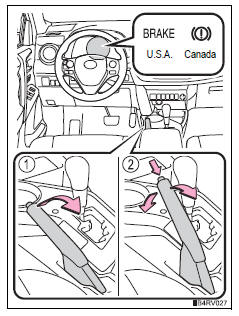

- Sets the parking brake
Fully pull the parking brake while depressing the brake pedal.
- Releases the parking brake
Slightly raise the lever and lower it completely while pressing the button.
Usage in winter time
Notice
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components overheating, which may affect braking performance and increase brake wear.
