Toyota RAV4 (XA40) 2013-2018 Service Manual: Rear center seat outer belt assembly

Toyota RAV4 (XA40) 2013-2018 Service Manual / Seat belt / Rear center seat outer belt assembly

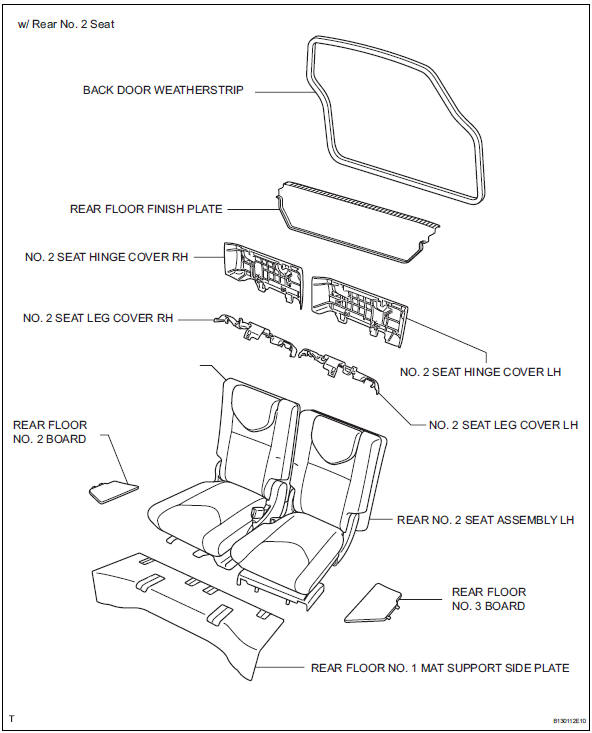

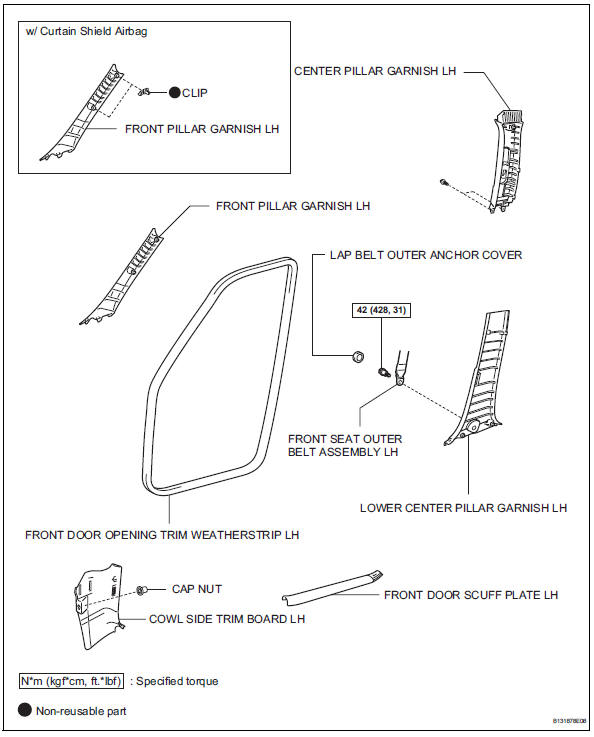

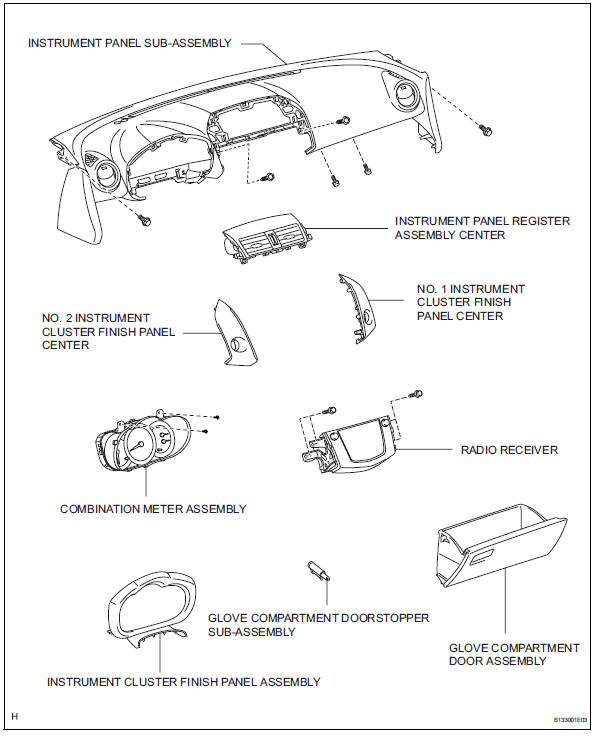

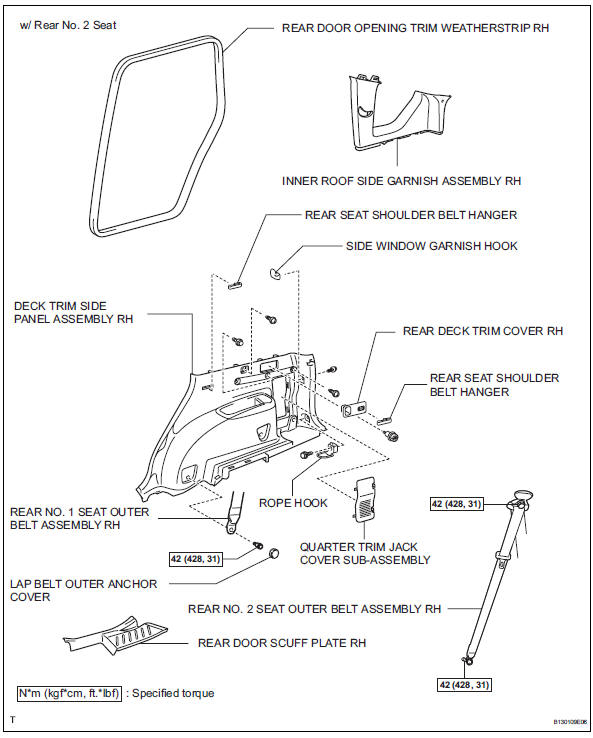

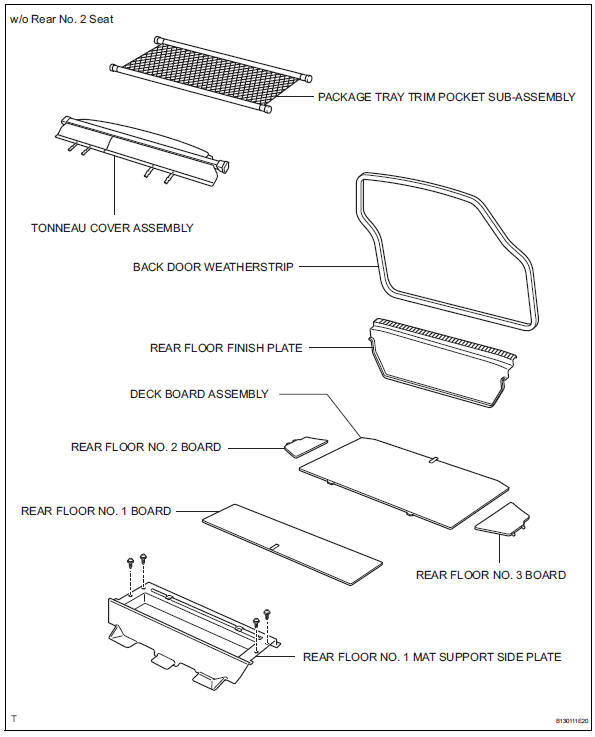

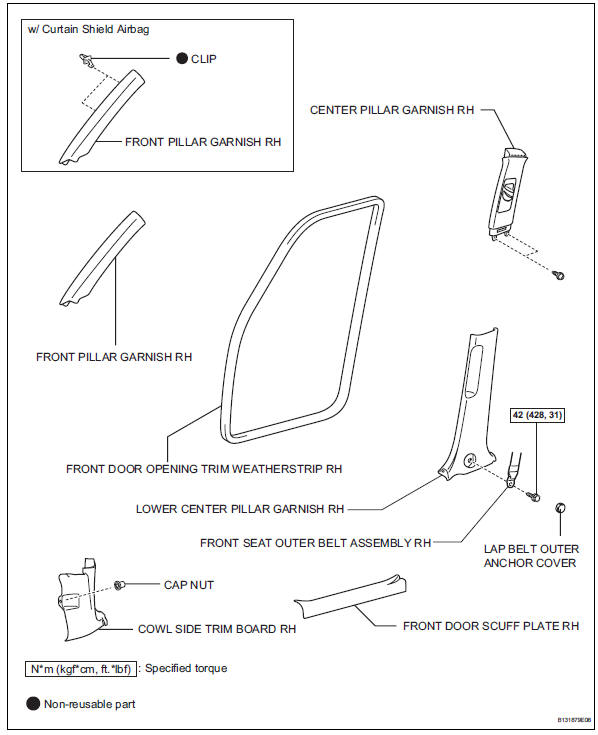

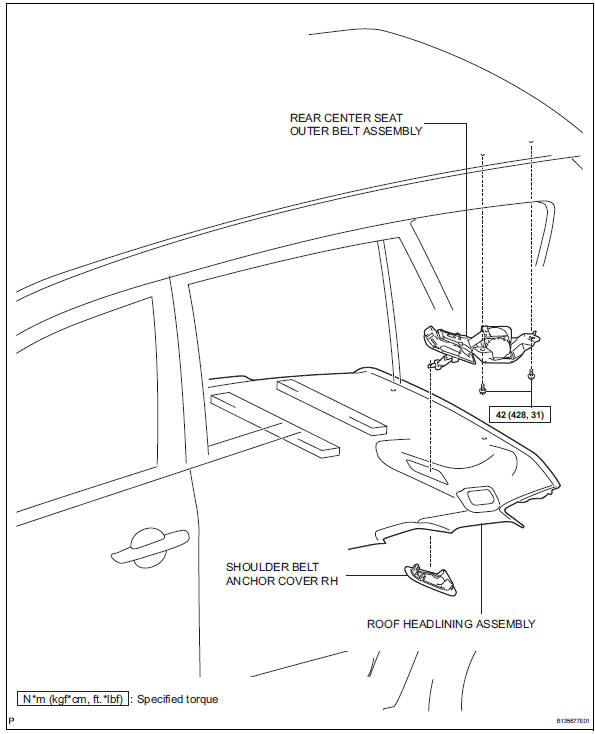

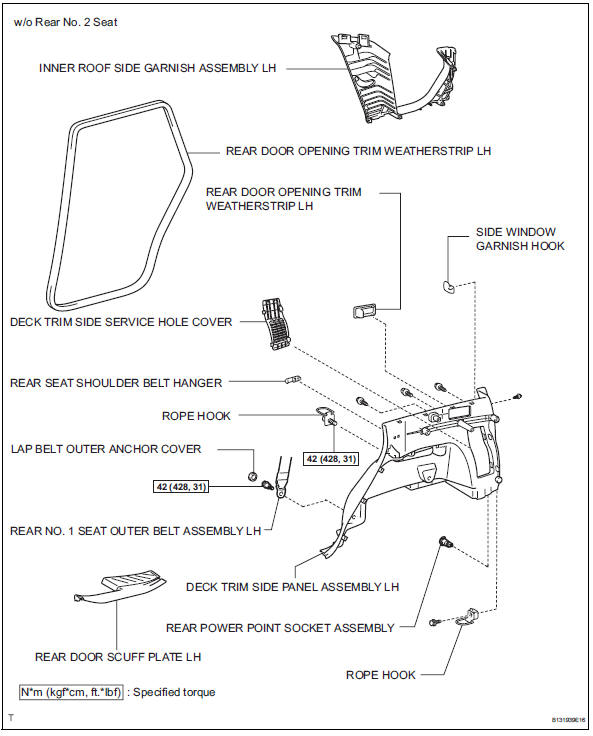

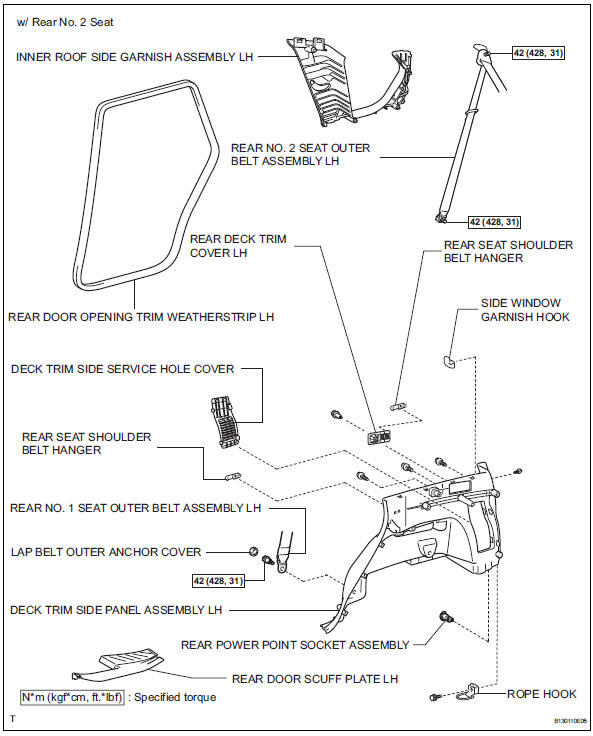

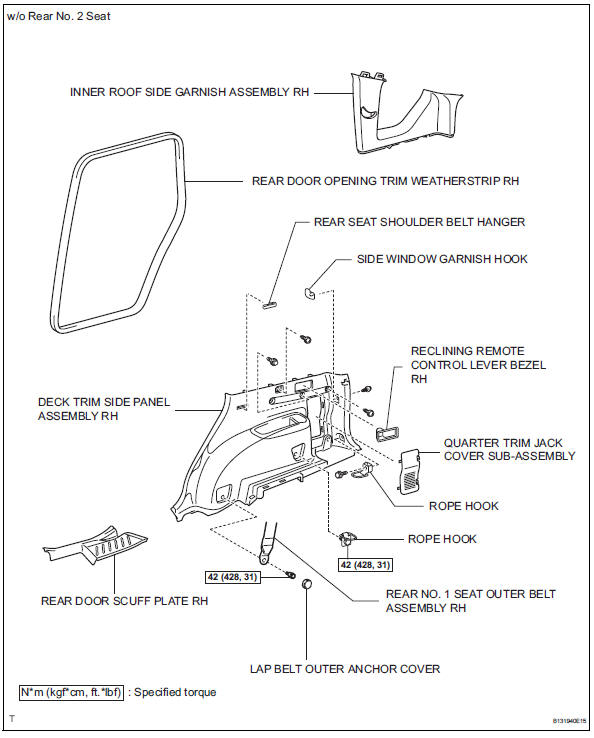

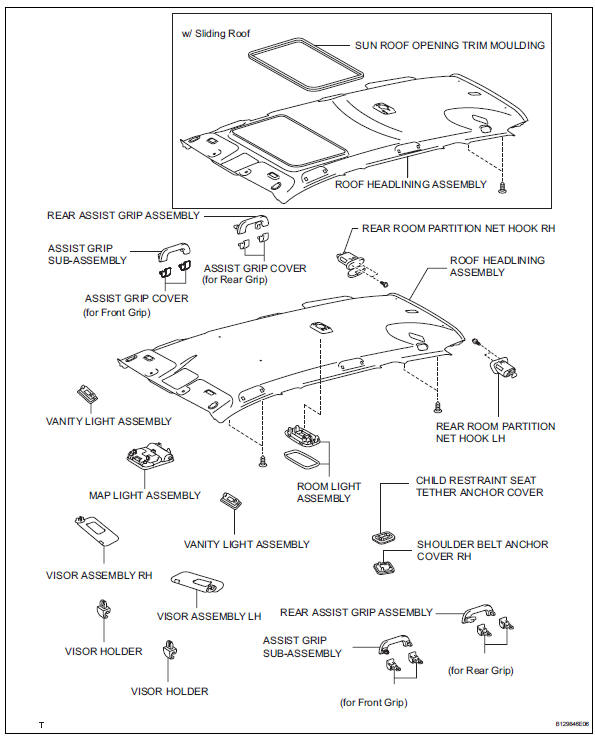

Components

Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Toyota RAV4. Rear center seat outer belt assembly


Removal

Caution:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  1. Remove shoulder belt anchor cover rh

  1. Using a screwdriver, remove the 4 claws and cover.

Hint:

Tape the screwdriver tip before use.

Toyota RAV4. Remove shoulder belt anchor cover rh


  1. Remove roof headlining assembly

Hint:

It is not necessary to completely remove the roof headlining. Slightly lower the rear section of the roof headlining.

  1. Partially remove the roof headlining (see page ir- 26).
  1. Remove rear center seat outer belt assembly

Toyota RAV4. Remove rear center seat outer belt assembly


  1. Remove the 2 bolts and seat belt.

Inspection

  1. Inspect rear center seat outer belt assembly

Toyota RAV4. Inspect rear center seat outer belt assembly


Notice:

Do not disassemble the retractor.

  1. When the inclination of the retractor is 15Рor less, check that the belt can be pulled from the retractor.

    When the inclination of the retractor is over 45Ь check that the belt locks.

    If the operation is not as specified, replace the belt.

Installation

  1. Install rear center seat outer belt assembly

Toyota RAV4. Install rear center seat outer belt assembly


  1. Install the seat belt with the 2 bolts.

    Torque: 42 n*m (428 kgf*cm, 31 ft.*Lbf)

  1. Install roof headlining assembly

  1. Install the roof headlining (see page ir-49).
  1. Install shoulder belt anchor cover rh

Toyota RAV4. Install shoulder belt anchor cover rh


  1. Install the cover with the 4 claws.
