Toyota RAV4 (XA40) 2013-2018 Service Manual: Starting  system

Parts location

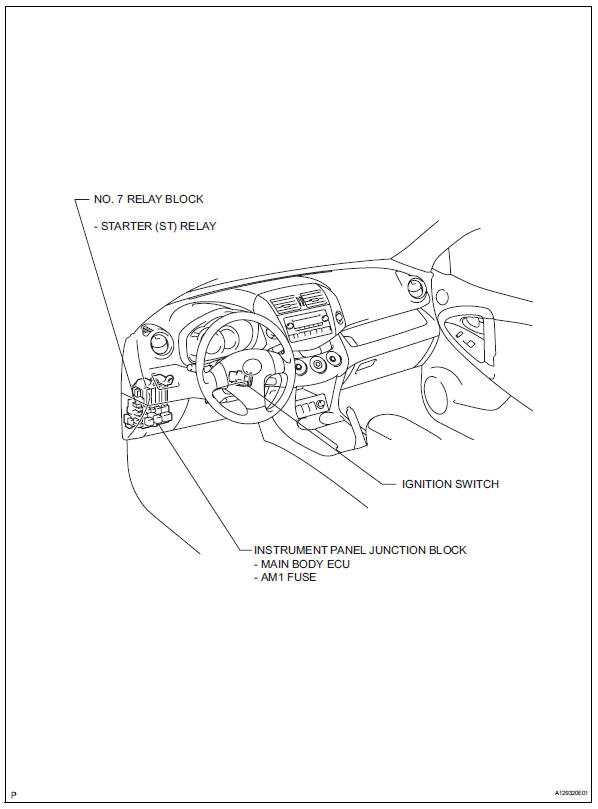

Toyota RAV4. Parts location

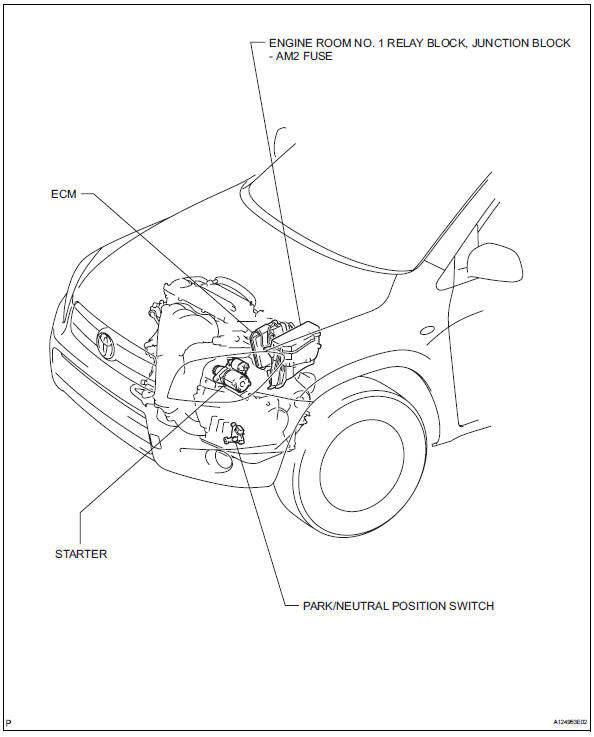

Toyota RAV4. Parts location


System diagram

The starting system rotates the starter motor according to the signals from the ignition switch and pnp switch.

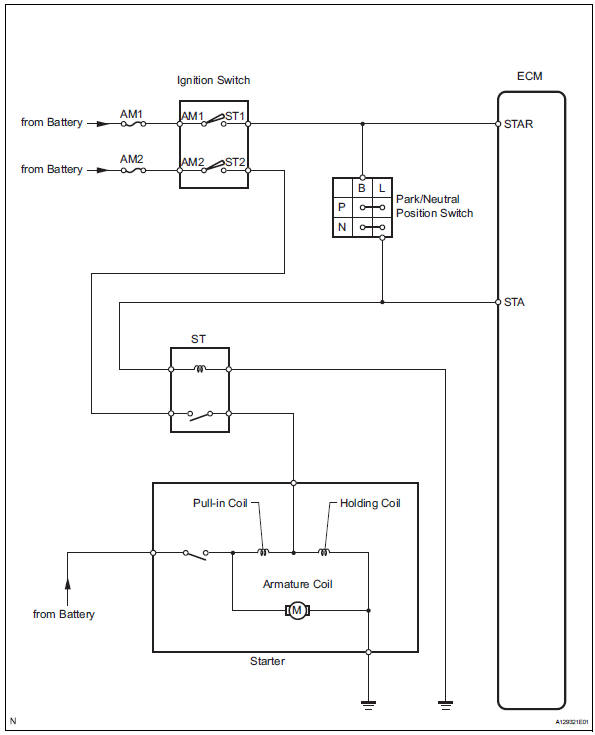

Toyota RAV4. System diagram


Ignition coil
Components Removal Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airb ...

Starter
Components ...
