Toyota RAV4 Service Manual: Terminals of ecu

  1. Check transponder key amplifier

Toyota RAV4. Check transponder key amplifier

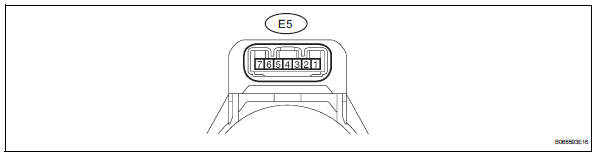

  1. Disconnect the e5 amplifier connector.
  2. Measure the resistance of the wire harness side connector.

Toyota RAV4. Check transponder key amplifier


If the result is not as specified, there may be a malfunction in the wire harness.

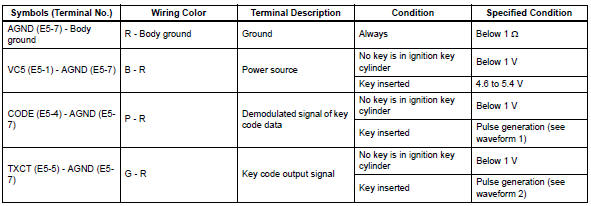

  1. Reconnect the e5 amplifier connector.
  2. Measure the resistance and voltage of the connector.

Toyota RAV4. Terminals of ecu


If the result is not as specified, there may be a malfunction in the amplifier.

  1. Using an oscilloscope, check the waveform 1.

Waveform 1 (reference):


Toyota RAV4. Check transponder key amplifier


Toyota RAV4. Check transponder key amplifier


  1. Using an oscilloscope, check the waveform 2.

Waveform 2 (reference):


  1. Check transponder key ecu

Toyota RAV4. Check transponder key ecu

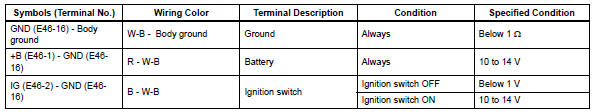

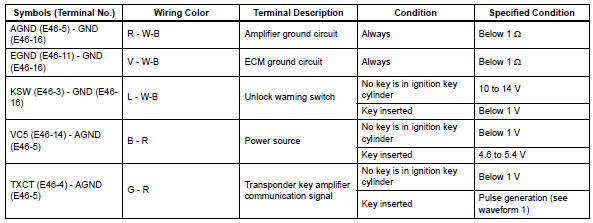

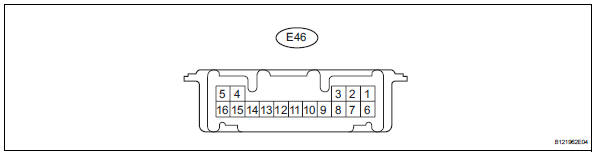

  1. Disconnect the e46 ecu connector.
  2. Measure the resistance and voltage of the wire harness side connector.

Toyota RAV4. Check transponder key ecu


If the result is not as specified, there may be a malfunction on the wire harness side.

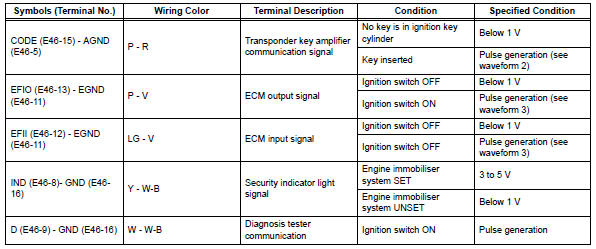

  1. Reconnect the e46 ecu connector.
  2. Measure the resistance and voltage of the connector.

Toyota RAV4. Check transponder key ecu


Toyota RAV4. Check transponder key ecu


If the result is not as specified, there may be a malfunction in the ecu.

  1. Using an oscilloscope, check the waveform 1.

Waveform 1 (reference):


Toyota RAV4. Check transponder key ecu


  1. Using an oscilloscope, check the waveform 2.

Waveform 2 (reference):


Toyota RAV4. Check transponder key ecu


  1. Using an oscilloscope, check the waveform 3.

Waveform 3 (reference):


Toyota RAV4. Check transponder key ecu


  1. Using an oscilloscope, check the waveform 4.

Waveform 4 (reference):


Toyota RAV4. Check transponder key ecu

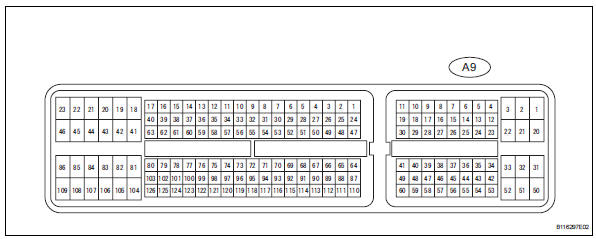

  1. Check ecm

Toyota RAV4. Check ecm


  1. Measure the resistance and voltage of the wire harness side connector.

Toyota RAV4. Check ecm


If the result is not as specified, there may be a malfunction in the wire harness.

  1. Using an oscilloscope, check the waveform 1.

Waveform 1 (reference):


Toyota RAV4. Check ecm


  1. Using an oscilloscope, check the waveform 2.

Waveform 2 (reference):


Toyota RAV4. Check ecm
