Toyota RAV4 Service Manual: Terminals of ecu

  1. Check sliding roof drive gear subassembly (sliding roof ecu)

Toyota RAV4. Check sliding roof drive gear subassembly (sliding roof ecu)

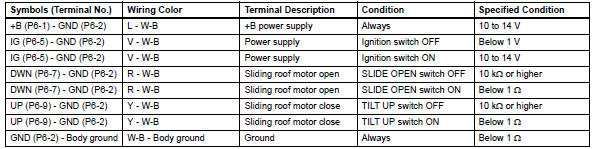

  1. Disconnect the p6 ecu connector.
  2. Measure the resistance and voltage of the wire harness side connector.

Toyota RAV4. Check sliding roof drive gear subassembly (sliding roof ecu)

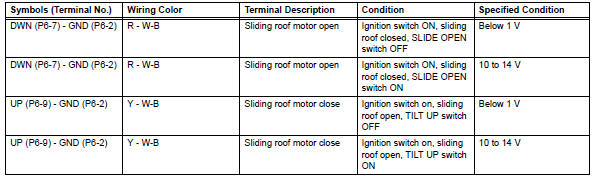

  1. Reconnect the p6 ecu connector.
  2. Measure the voltage of the connector.

Toyota RAV4. Check sliding roof drive gear subassembly (sliding roof ecu)


If the result is not as specified, the ecu may have a malfunction.

Problem symptoms table
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of th ...

Diagnosis system
Description Sliding roof system data and diagnostic trouble codes (dtcs) can be read through the vehicle's data link connector 3 (dlc3). When the system seems to be malfunctioning, use ...
