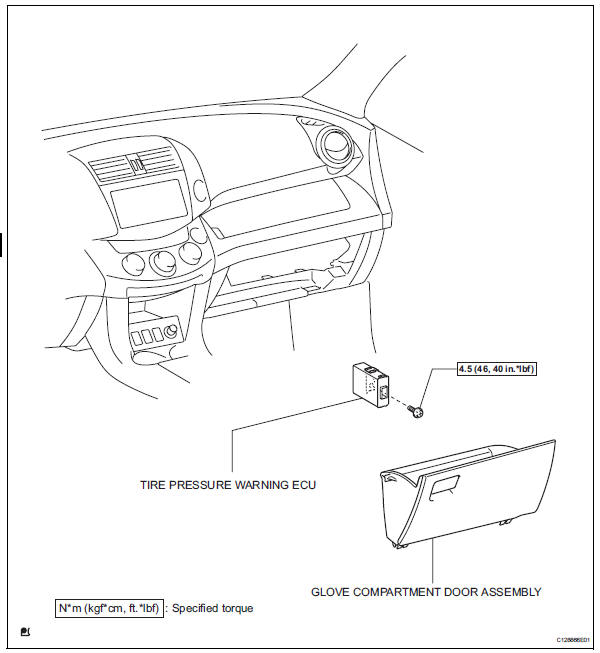

Components

Toyota RAV4. Tire pressure warning ecu


Removal

  1. Disconnect cable from negative battery terminal

Caution:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  1. Remove glove compartment door assembly (see page ip-20)

  2. Remove tire pressure warning ecu

Toyota RAV4. Remove tire pressure warning ecu


  1. Disconnect the connector.
  2. Remove the bolt and ecu.

Installation

  1. Install tire pressure warning ecu

Toyota RAV4. Install tire pressure warning ecu


  1. Install the ecu with the bolt.

    Torque: 4.5 N*m (46 kgf*cm, 40 in.*Lbf)

  2. Connect the connector.
  1. Install glove compartment door assembly (see page ip-25)

  2. Connect cable to negative battery terminal

  3. Register transmitter id (see page tw-10)

  4. Inspect tire pressure warning system
