Toyota RAV4 (XA40) 2013-2018 Service Manual: Components

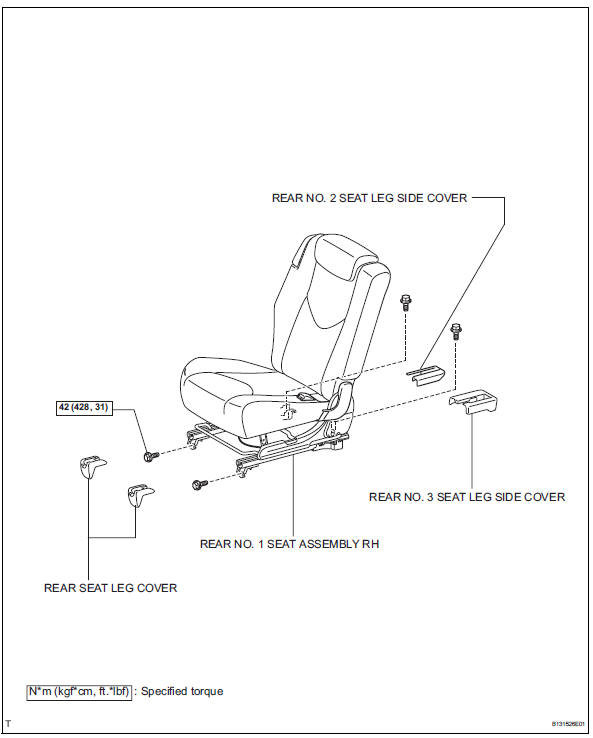

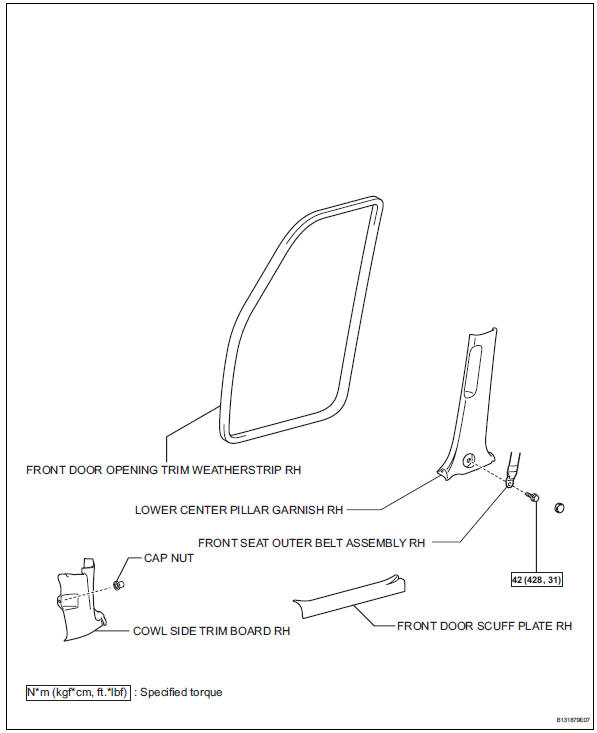

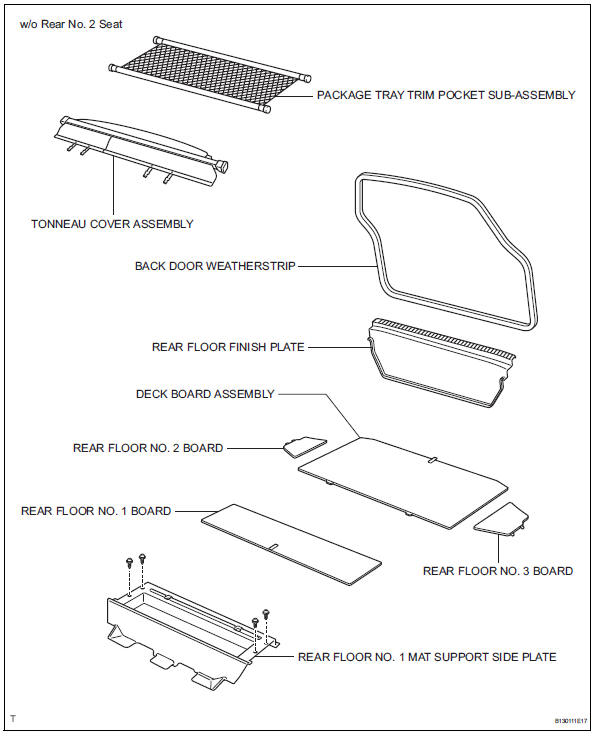

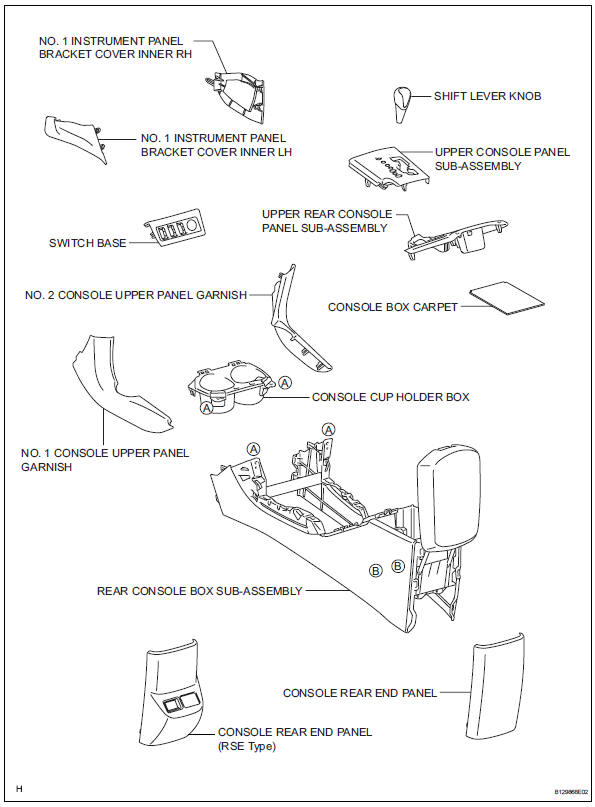

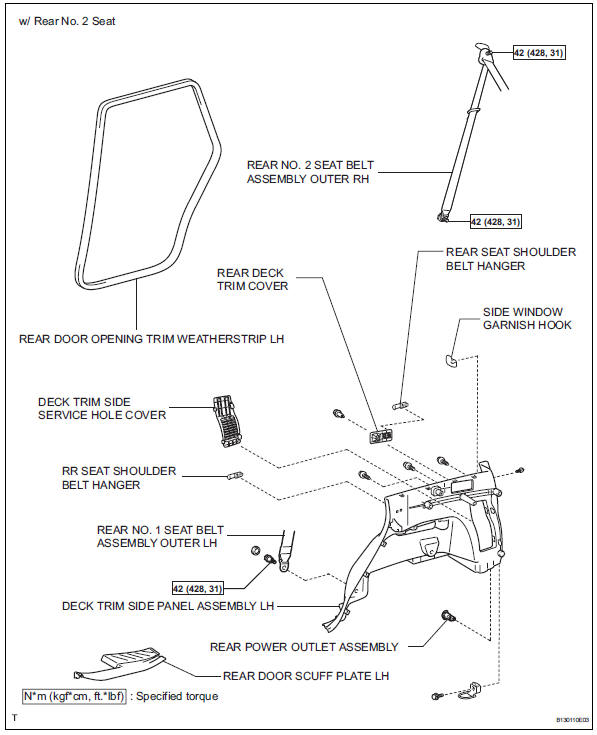

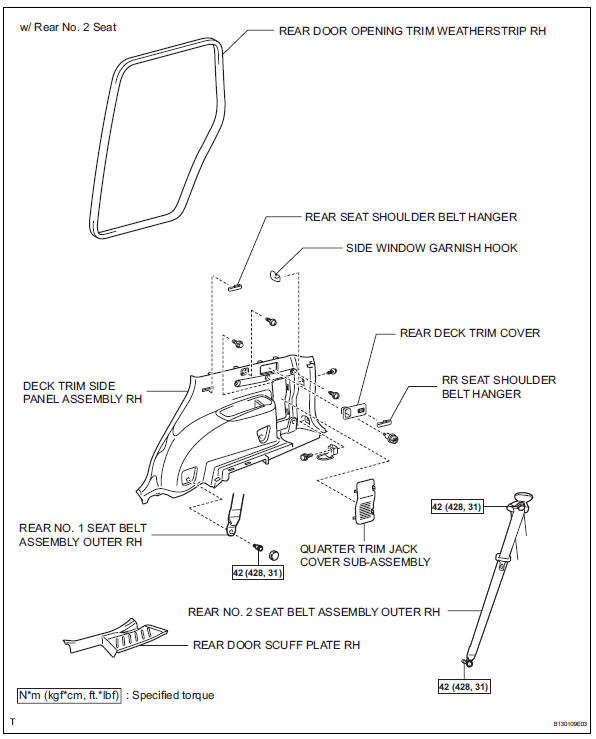

Toyota RAV4. Components


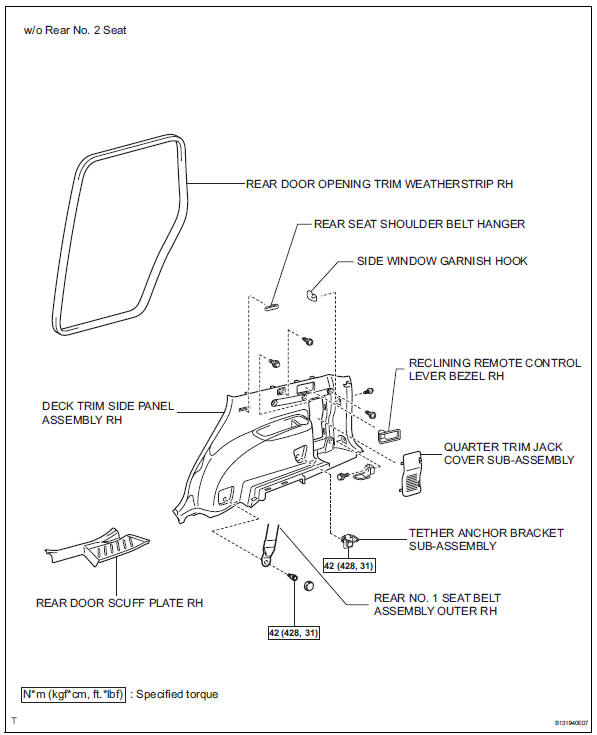

Toyota RAV4. Components


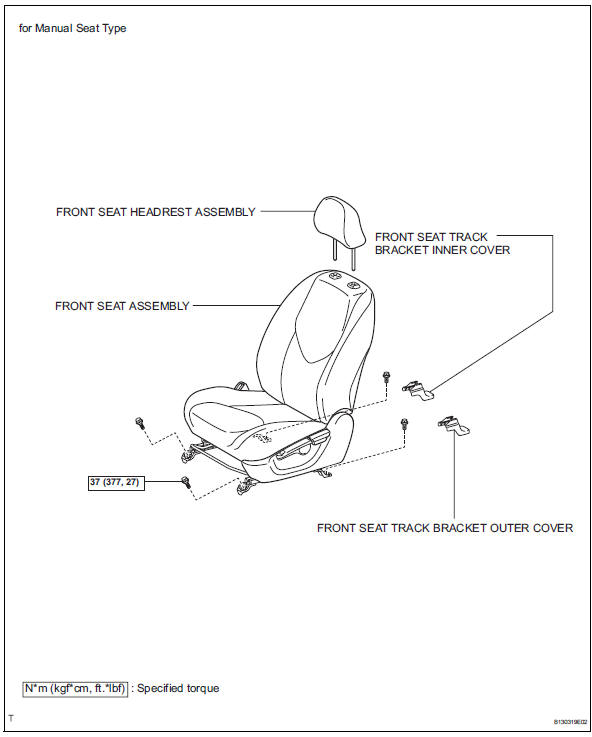

Toyota RAV4. Components


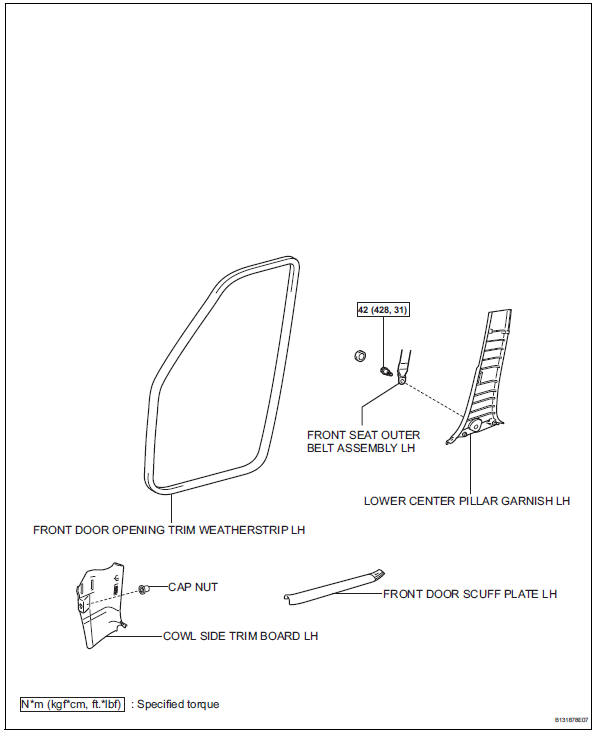

Toyota RAV4. Components


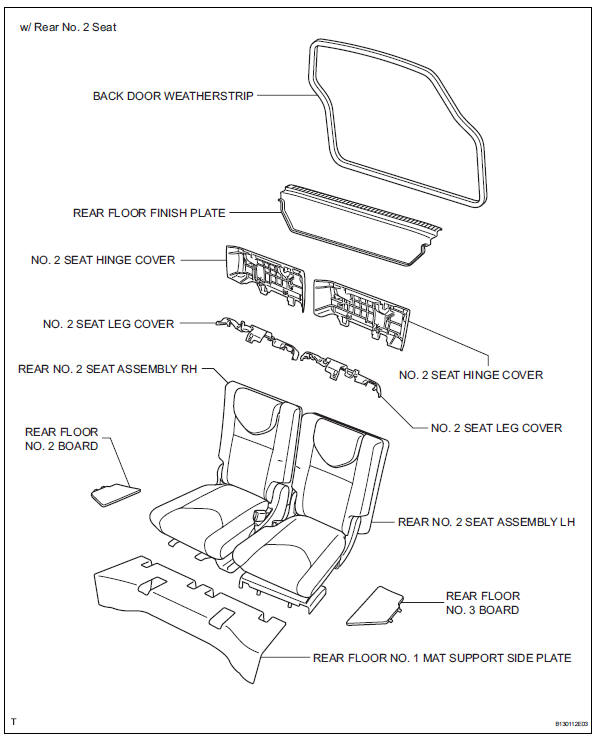

Toyota RAV4. Components


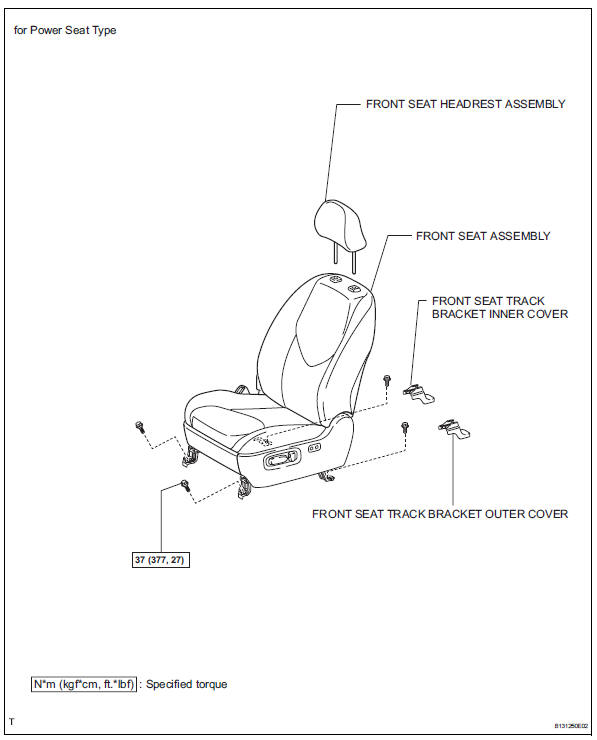

Toyota RAV4. Components


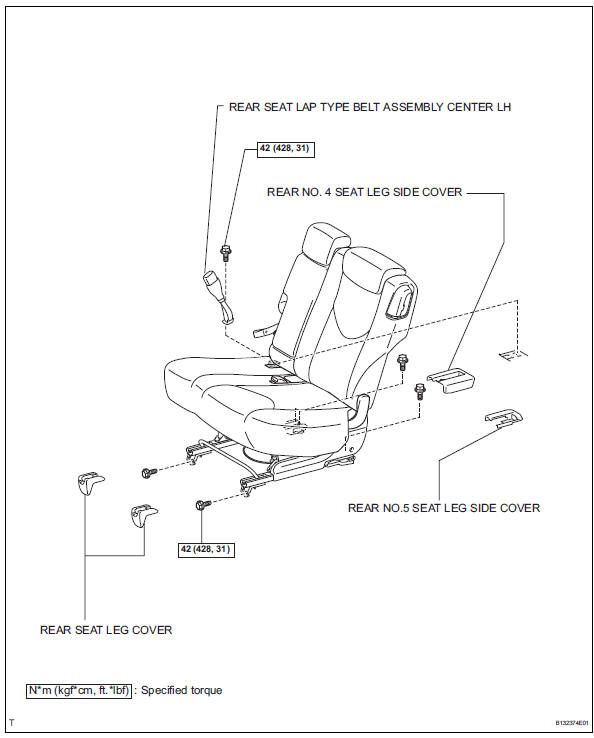

Toyota RAV4. Components


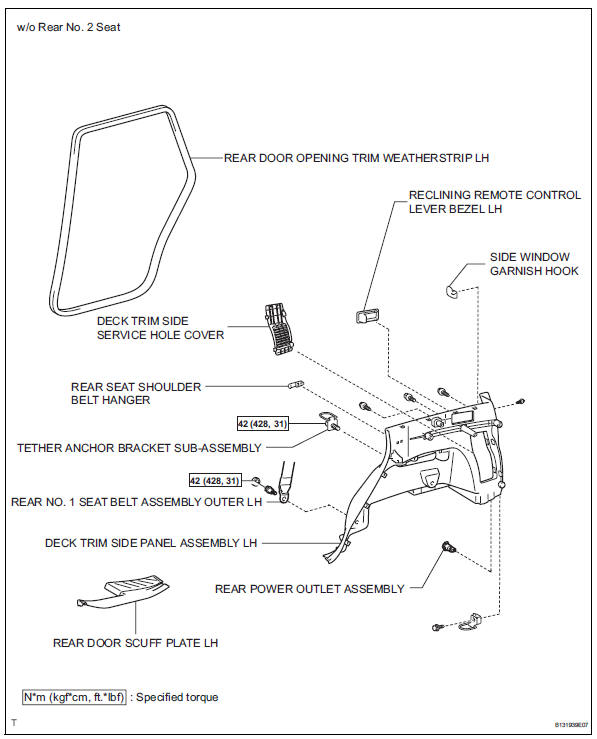

Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components

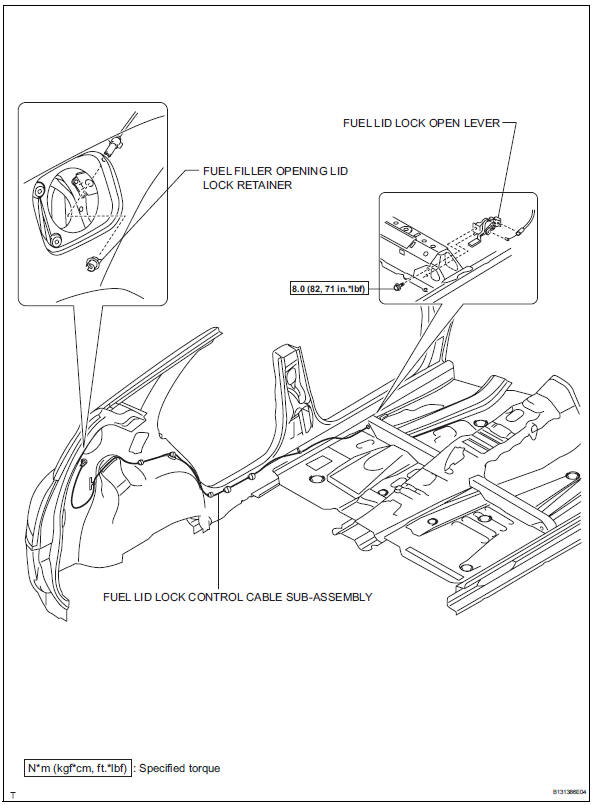

Fuel lid lock control
...

Removal
Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt preten ...

Other materials:

Evaporative emission control system incorrect purge flow
Dtc summary Description The description can be found in the evap (evaporative emission) system (see page es-335). Inspection procedure Refer to the evap system (see page es-340). Monitor description The two monitors, key-off and purge flow, are used to detect malfunctions relating ...

Front passenger side - side airbag sensor assembly initialization incomplete
Description The side airbag sensor rh consists of parts including the diagnostic circuit and the lateral deceleration sensor. When the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether or not the srs should be activated. Dtc b1628/82, ...

Installation
Hint: Use the same procedures for the lh side and rh side. The procedures listed below are for the lh side. A bolt without a torque specification is shown in the standard bolt chart (see page ss-2). Install rear no. 1 Seat outer belt assembly lh Align the claws with the sea ...
