Toyota RAV4 (XA40) 2013-2018 Owners Manual: Installation with latch system
- Adjust the seatback to the 8th lock position from the fully reclined position.
- Fully reclined position
- 8Th lock position
If your child restraint system interferes with a head restraint and cannot be installed properly, install the child restraint system after removing the head restraint.
- Widen the gap between the seat cushion and seatback slightly.
Type a

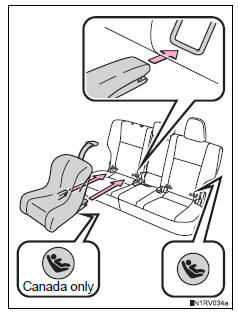

- Latch the hooks of the lower
straps onto the latch
anchors.
If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
For owners in canada: the symbol on a child restraint system indicates the presence of a lower connector system.
Type b
- Latch the buckles onto the latch anchors.
If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
For owners in canada:
the symbol on a child restraint
system indicates the presence
of a lower connector system.
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the latch
anchors or a seat belt. Attach the top tether strap when installing
a ...
Installing child restraints using a seat belt (child restraint lock
function belt)
Rear-facing „o infant seat/convertible seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
Fully reclined position
8Th lock position
If your ch ...
