Toyota RAV4 (XA50) 2019-2025 Owners Manual: Operating the interior lights
â– Front interior lights

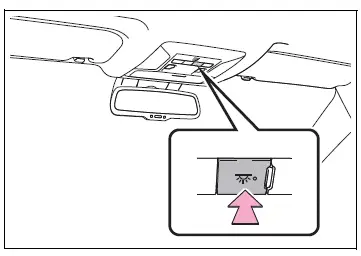

Turns the lights on/off

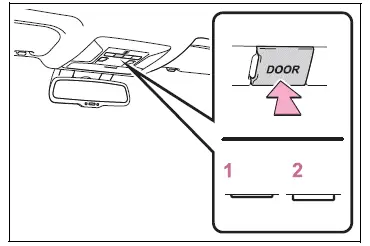

Turns the switch to the door position (door linked)
When a door is opened while the door position is on, the lights turn on.
- Turns the door position on
- Turns the lights off

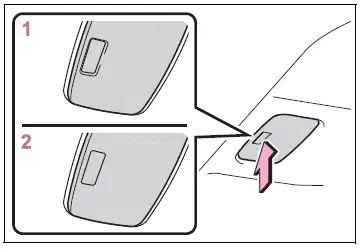

â– Rear interior light
- Turns the light on
- Turns the door-linked function on (door position)
The light turns on/off according to the opening/closing of the doors.

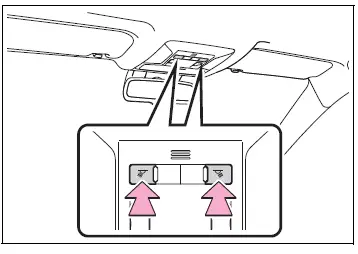

Operating the personal lights
Turns the lights on/off
Location of the interior lights
Rear interior light
Front interior lights/personal lights
Open tray lights (if equipped)*
Footwell lights (if equipped)*
Front cup holder lights (if equipped)*
*: These lights turn on when a ...
