Toyota RAV4 (XA40) 2013-2018 Service Manual: Precaution
- Precaution for vehicle with srs airbag and seat belt pretensioner
- Some operations in this section may affect the srs airbags and seat belt pretensioner. Prior to performing the corresponding operations, read the srs airbag notice (see page rs-1).

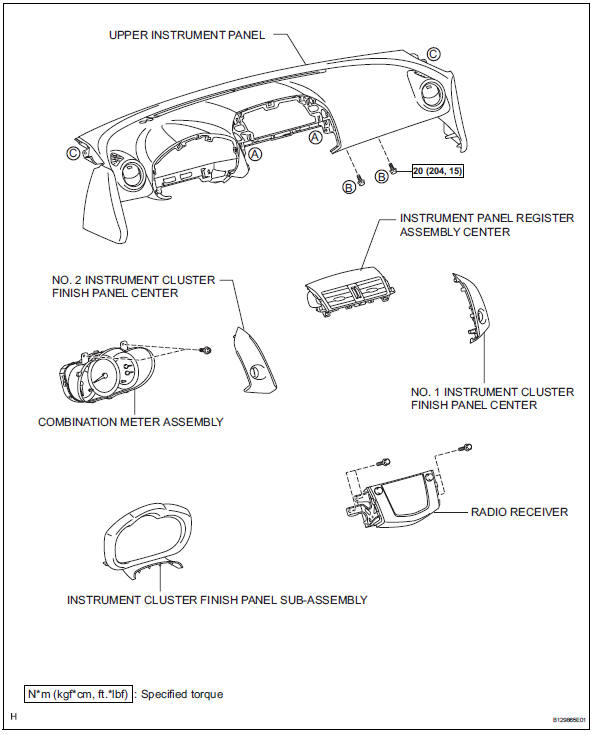

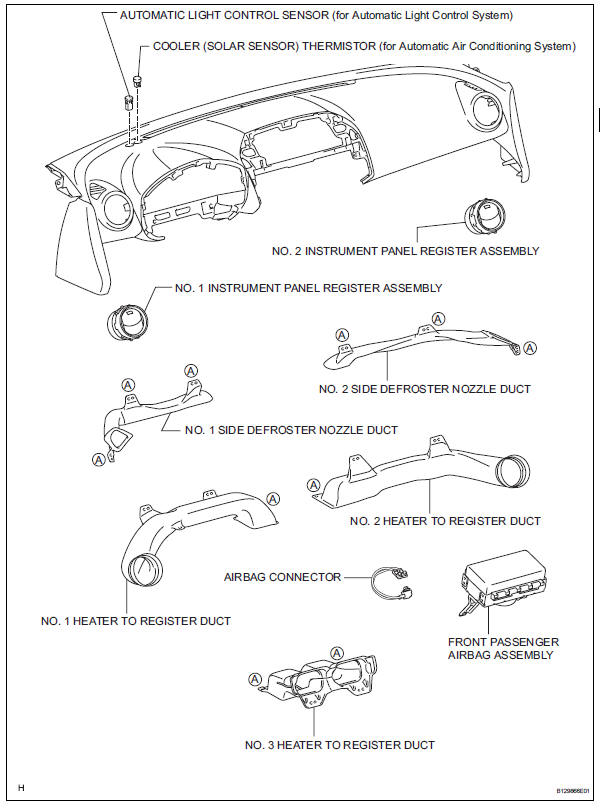

Components
Removal
Table of bolt, screw and nut
Hint:
All bolts, screws and nuts relevant to installing and
removing the instrument panel are shown along with
their alphabet codes in the table below.
Di ...
