Toyota RAV4 (XA40) 2013-2018 Service Manual: Accelerator pedal rod

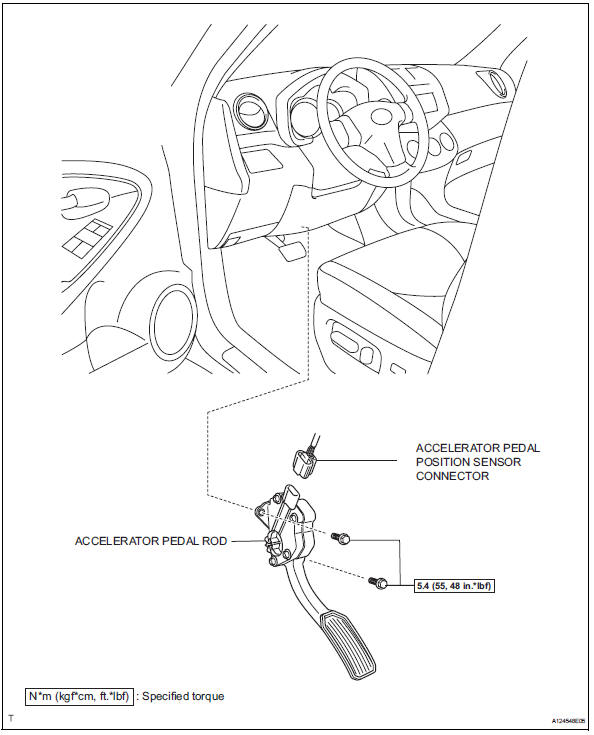

Components

Toyota RAV4. Components


Installation
Install ecm Install the 2 brackets to the ecm with the 4 screws. Torque: 3.0 N*m (30 kgf*cm, 27 in.*Lbf) Connect the 2 ecm connectors. Notice: When connecting the connector, ma ...

On-vehicle inspection
Check accelerator pedal rod Check the voltage. Connect the intelligent tester to the dlc3. Turn the ignition switch on Turn the intelligent tester on. Select the menu items: d ...
