Toyota RAV4 (XA40) 2013-2018 Service Manual: Ecu malfunction

Toyota RAV4. Ecu malfunction

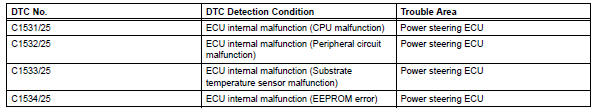

Description

Inspection procedure

If the power steering ecu detects these dtcs, it will shut off the motor relay circuit (built into the power steering ecu) and stop power assist. However, power assist continues if dtc c1533 is output.

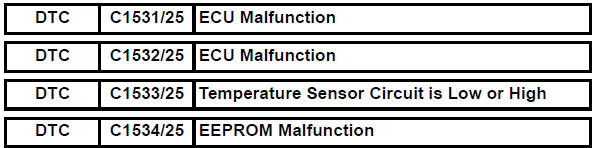

  1. Reconfirm dtc

  1. Check for dtc.

Ok: dtc is not output.



Replace power steering ecu

Motor rotation angle sensor malfunction
Description The motor rotation angle sensor detects the motor rotation angle and sends this information to the power steering ecu. Wiring diagram Inspection procedure Check conne ...

Ig power supply voltage malfunction
Description The power steering ecu distinguishes the ignition switch status as on or off through the ig power source circuit. Wiring diagram Inspection procedure Read value of inte ...
