Toyota RAV4 Service Manual: Exhaust pipe

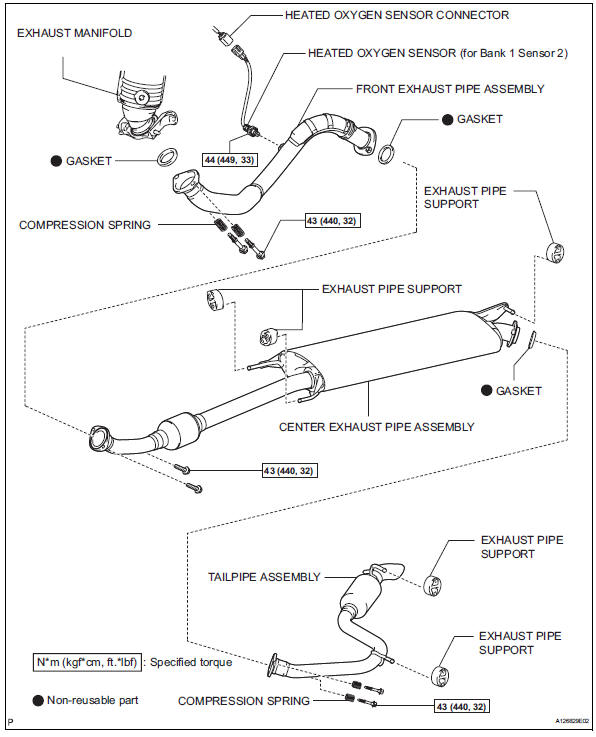

Components

Toyota RAV4. Exhaust pipe


Removal

  1. Disconnect cable from negative battery terminal

Caution:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  1. Remove heated oxygen sensor (for bank 1 sensor 2) (see page ec-24)

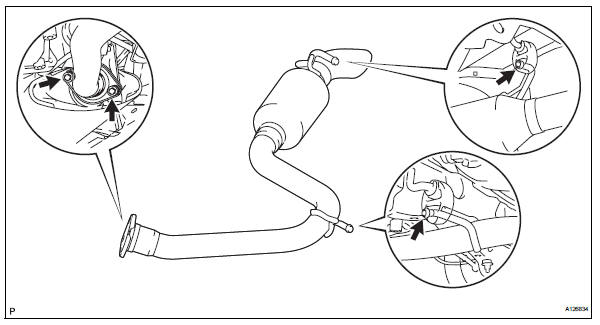

  2. Remove tailpipe assembly

Toyota RAV4. Disconnect cable from negative battery terminal


  1. Remove the 2 bolts and 2 compression springs.
  2. Disconnect the 2 exhaust pipe supports, and remove the tailpipe.
  3. Remove the gasket from the center exhaust pipe.

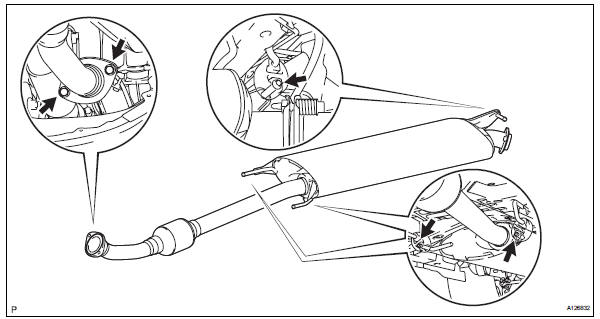

  1. Remove center exhaust pipe assembly

  1. Remove the 2 bolts.
  2. Disconnect the 3 exhaust pipe supports, and remove the center exhaust pipe.
  3. Remove the gasket from the front exhaust pipe.

Toyota RAV4. Remove center exhaust pipe assembly


  1. Remove front exhaust pipe assembly

  1. Remove the 2 bolts, 2 compression springs and front exhaust pipe.

Toyota RAV4. Remove front exhaust pipe assembly


Exhaust pipe
Installation Install front exhaust pipe assembly Using a vernier caliper, measure the free length of the compression spring. Minimum length: 41.5 Mm (1.634 In.) If the length is l ...
