Toyota RAV4 (XA40) 2013-2018 Service Manual: Inspection

  1. Inspect ignition switch assembly

  1. Measure the resistance of the switch.

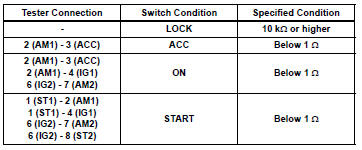

Standard resistance


Toyota RAV4. Inspection


If the result is not as specified, replace the switch assembly.

Removal
Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt preten ...

Installation
Install ignition switch assembly Install the ignition switch with the 2 screws. Install the ignition key cylinder light connector. Install the ignition switch connector. ...
