Toyota RAV4 (XA40) 2013-2018 Service Manual: Pressure control solenoid "d" electrical (shift solenoid valve slt)
Description
Refer to dtc p2714 (see page ax-91).
Monitor description
When an open or short in the shift solenoid valve slt circuit is detected, the ecm interprets this as a fault.
The ecm will illuminate the mil and store the dtc.

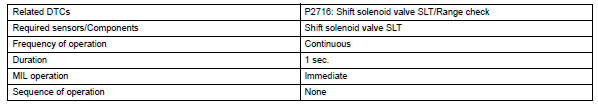

Monitor strategy

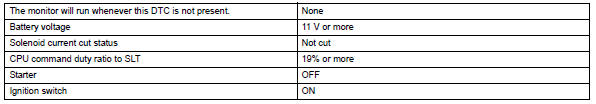

Typical enabling conditions
Typical malfunction thresholds
Component operating range
Wiring diagram
Refer to dtc p2714 (see page ax-91).
Inspection procedure
- Inspect transmission wire (shift solenoid valve slt)
- Disconnect the b27 wire connector.
- Measure the resistance of the transmission wire.
Standard resistance
- Check wire harness (transmission wire - ecm)
- Disconnect the b30 ecm connector.
- Measure the resistance of the wire harness side connector.

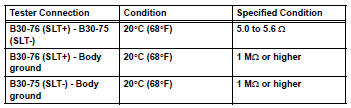

Standard resistance
Replace ecm
- Inspect shift solenoid valve slt
- Remove the shift solenoid valve slt.

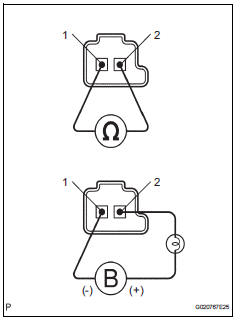

- Measure the resistance of the solenoid valve.
Standard resistance: 5.0 To 5.6 Ùat 20°c (68°f)
- Connect the battery's positive (+) lead with a 21 w bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.
Ok: valve moves and makes operating noise.
Repair or replace transmission wire
