Toyota RAV4 Owners Manual: Rear window wiper and washer

Turning the end of the lever turns on the rear window wiper, and pushing the lever away from you turns on the rear window wiper and washer.

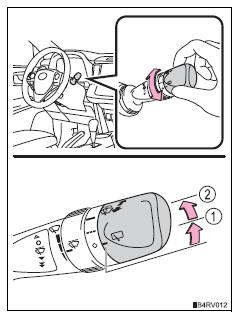

For the u.S.A.

  1. Intermittent operation

  2. Normal operation

Toyota RAV4. Rear window wiper and washer


  1. Washer/wiper dual operation

Toyota RAV4. Rear window wiper and washer

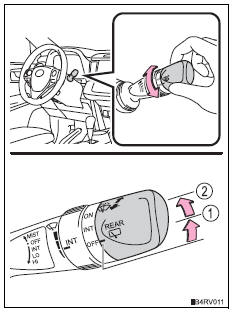

For Canada

  1. Intermittent operation

  2. Normal operation

Toyota RAV4. Rear window wiper and washer


  1. Washer/wiper dual operation

Toyota RAV4. Rear window wiper and washer


The rear window wiper and washer can be operated when

The engine switch is in the “on” position.

The engine switch is in ignition on mode.

If no washer fluid sprays

Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid reservoir.

Notice

When the rear window is dry

Do not use the wiper, as it may damage the rear window.

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may overheat.
