Toyota RAV4 (XA40) 2013-2018 Owners Manual: Shifting the shift lever
Vehicles without a smart key system
While the engine switch is in the
“on” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between p and d, make sure that the vehicle is completely stopped.
Vehicles with a smart key system
While the engine switch is in
ignition on mode, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between p and d, make sure that the vehicle is completely stopped.

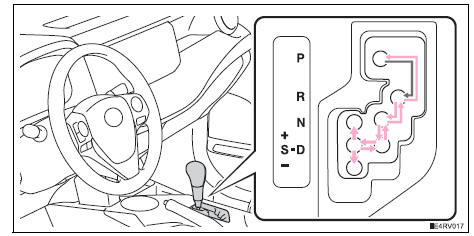

Shift position purpose
*1: Shifting the shift lever to d allows the system to select a gear suitable
for
the driving conditions.
Setting the shift lever to d is recommended for normal driving.
*2: Selecting shi ...
