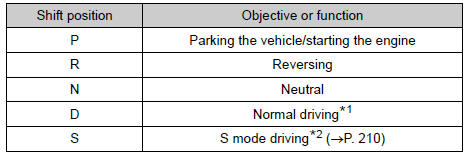

Toyota RAV4 Owners Manual: Shift position purpose
*1: Shifting the shift lever to d allows the system to select a gear suitable for the driving conditions.
Setting the shift lever to d is recommended for normal driving.
*2: Selecting shift ranges using s mode restricts the upper limit of the possible gear ranges, controls engine braking force, and prevents unnecessary upshifting.
Shifting the shift lever
Vehicles without a smart key system
While the engine switch is in the
“on” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between p and d, ...
Selecting the driving mode
The following modes can be selected to suit driving conditions.
Eco drive mode
Use eco drive mode to help achieve low fuel consumption during
trips that involve frequent accelerating.
Press the ...
