Toyota RAV4 (XA40) 2013-2018 Service Manual: Throttle body

Components

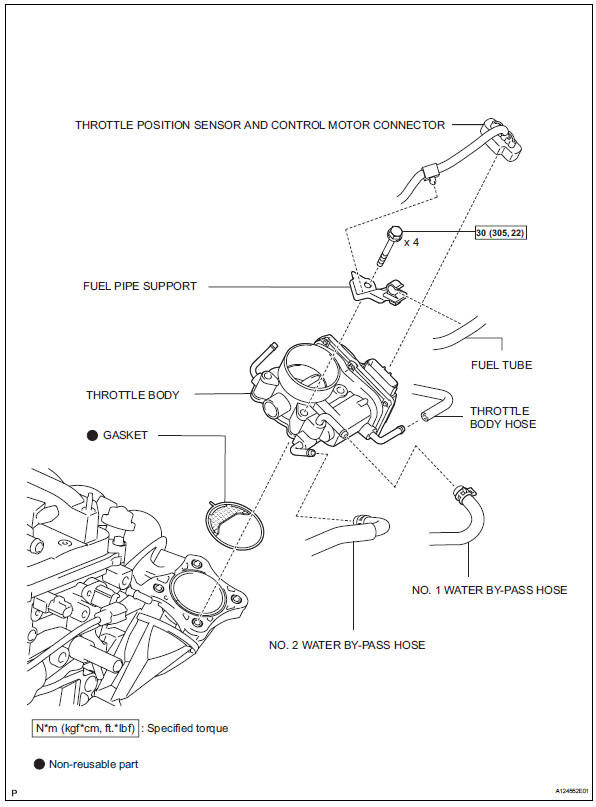

Toyota RAV4. Components


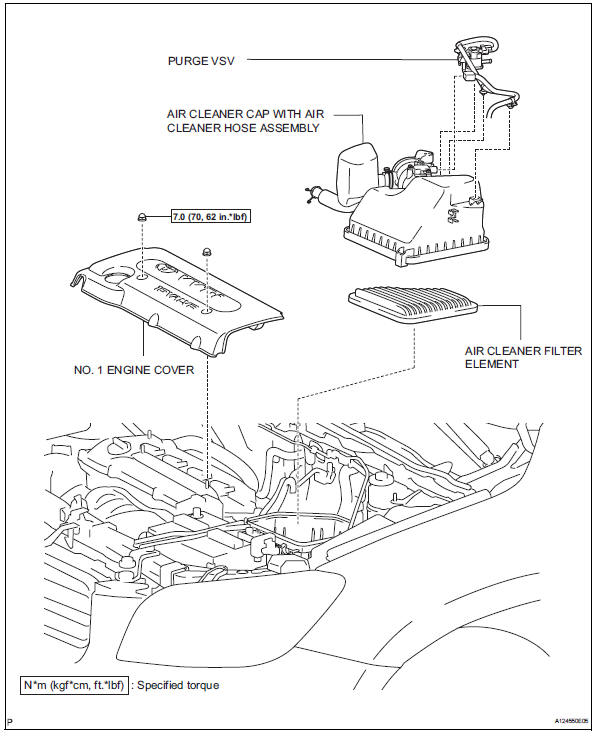

Toyota RAV4. Components


Installation
Install engine coolant temperature sensor Install a new gasket onto the sensor. Using sst, install the sensor. Sst 09817-33190 torque: 19.6 N*m (200 kgf*cm, 14 ft.*Lbf) Connect th ...

On-vehicle inspection
Check throttle body Check the throttle control motor operating sounds. Turn the ignition switch on. When pressing the accelerator pedal, check the operating sound of the running mot ...
