Toyota RAV4 Service Manual: Vin not programmed or mismatch - ecm / pcm

Description

Dtc p0630 is set when the vehicle identification number (vin) is not stored in the engine control module (ecm) or the input vin is incorrect. Input the vin with the intelligent tester.

Toyota RAV4. Vin not programmed or mismatch - ecm / pcm

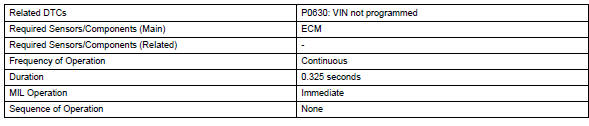

Monitor strategy

Toyota RAV4. Monitor strategy


Typical enabling conditions

Toyota RAV4. Typical enabling conditions


Typical malfunction thresholds

Toyota RAV4. Typical malfunction thresholds


Component operating range

Toyota RAV4. Component operating range


Inspection procedure

  1. Read current dtc

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch on and turn the tester on.
  3. Select the following menu items: diagnosis / enhanced obd ii / dtc info / current codes.
  4. Read dtcs.

Toyota RAV4. Inspection procedure


If any dtcs other than p0630 are output, troubleshoot those dtcs first.

Notice:

If p0630 is set, the vin must be input to the ecm using the intelligent tester. However, all dtcs are cleared automatically by the tester when the vin is input. If dtcs other than p0630 are set, check them first.



  1. Input vin with intelligent tester

  1. Refer to the registration (see page es-14).
