Toyota RAV4 (XA40) 2013-2018 Owners Manual: Fastening the seat belt (for the rear center seat)
- Press the plate to release, and then pull the seat belt.
- Push the plate into the buckle in the order of plate “a” and plate “b” until a clicking sound is heard.
- Plate “a”, buckle “a”
- Plate “b”, buckle “b”
Fastening and releasing the seat belt (except for the rear center
seat)
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
...

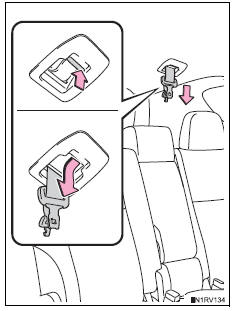

Releasing and stowing the seat belt (for the rear center seat)
To release the hooked buckle
“b”, push the buckle release
button.
Release button
To release the hooked plate
A insert the mechanical key
Or plate B or the
wireless key ...
