Inspection

Toyota RAV4. Front seat cushion heater


  1. Inspect front seat cushion heater assembly lh
  1. Measure the resistance of the seat cushion heater.

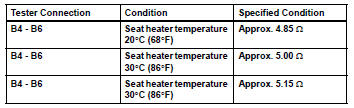

Standard resistance


If the result is not as specified, replace the seat cushion heater assembly.

  1. Heat the thermostat with a light.
  2. Measure the resistance of the seat cushion heater.

Standard resistance


If the result is not as specified, replace the seat cushion heater assembly.

  1. Inspect front seat cushion heater assembly rh

Hint:

Use the same procedures described for the lh side.

Front seatback heater
Inspection Inspect front seatback heater assembly lh Measure the resistance of the seatback heater. Standard resistance If the result is not as specified, replace the seatback he ...
