Toyota RAV4 Service Manual: Horn system

Parts location

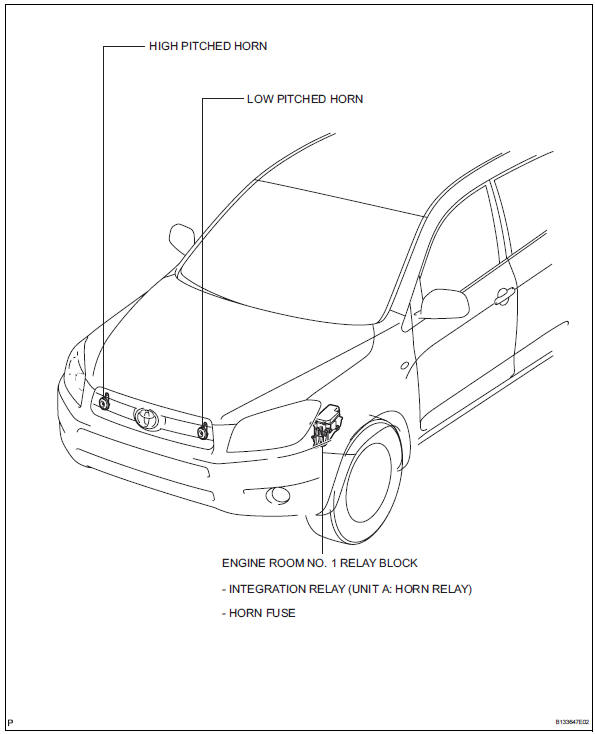

Toyota RAV4. Horn system

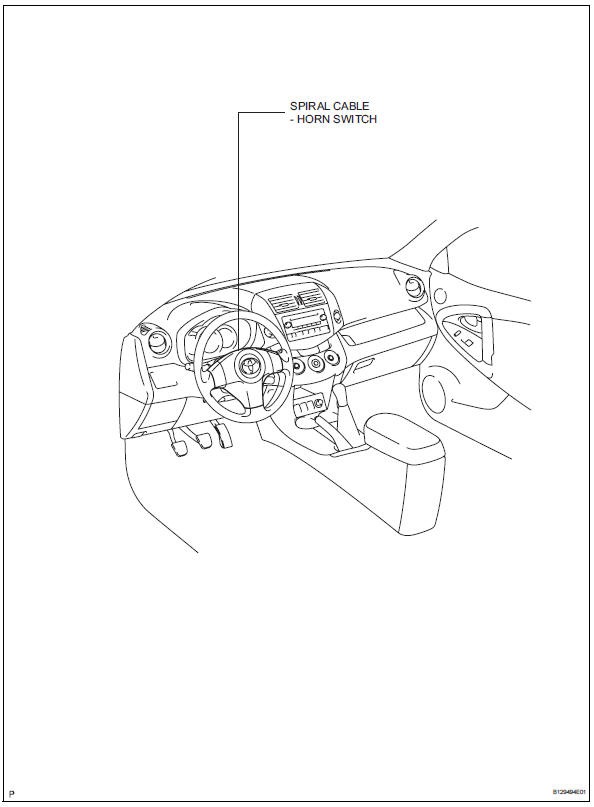

Toyota RAV4. Parts location


System diagram

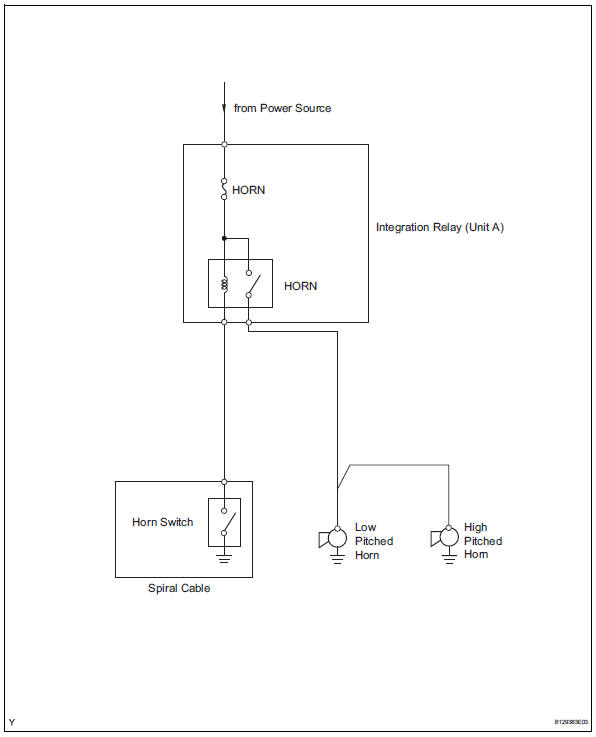

Toyota RAV4. System diagram


Problem symptoms table

Hint:

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

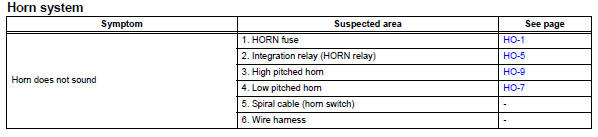

Toyota RAV4. Problem symptoms table


Horn
...

Horn relay
On-vehicle inspection Remove engine room no. 1 Relay block cover Inspect integration relay (unit a: horn relay) Using a screwdriver, detach the 2 claws and disconnect the integration ...
