Toyota RAV4 (XA50) 2019-2025 Owners Manual: Armrest

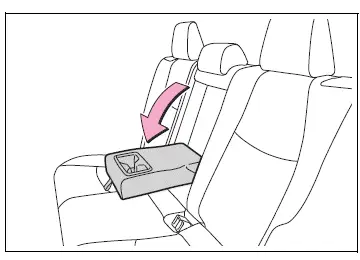

Fold down the armrest for use.
NOTICE
â– To prevent damage to the armrest
Do not apply too much load on the armrest.
Assist grips

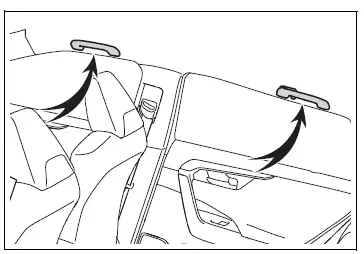

An assist grip installed on the ceiling can be used to support your body while sitting on the seat.
WARNING
â– Assist grips
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
â– To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
Coat hooks

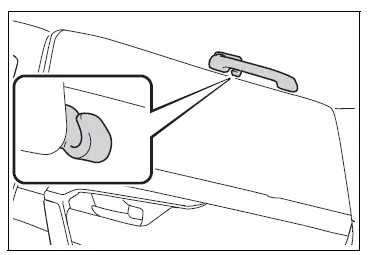

The coat hooks are provided with the rear assist grips.
WARNING
â– Items that must not be hanged on the hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
