Toyota RAV4 (XA40) 2013-2018 Service Manual: Identification information

Vehicle identification and serial numbers

  1. Vehicle identification number

  1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustrations.
  1. Vehicle identification number plate
  2. Certification label

Toyota RAV4. Vehicle identification and serial numbers


  1. Engine serial number and transaxle serial number

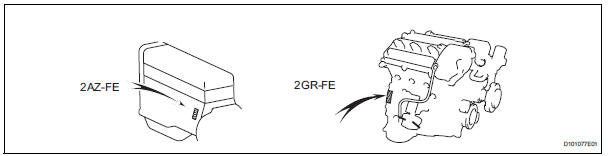

  1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.
  1. Engine serial number

Toyota RAV4. Vehicle identification and serial numbers


Toyota RAV4. Vehicle identification and serial numbers


  1. Transaxle serial number

Toyota RAV4. Vehicle identification and serial numbers


How to use this manual
General information General description This manual is written in accordance with sae j2008. Diagnosis Removing / installing, replacing, disassembling / reassembling, checking an ...

Repair instruction
...
